Garmin

GPSMAP 1223xsv

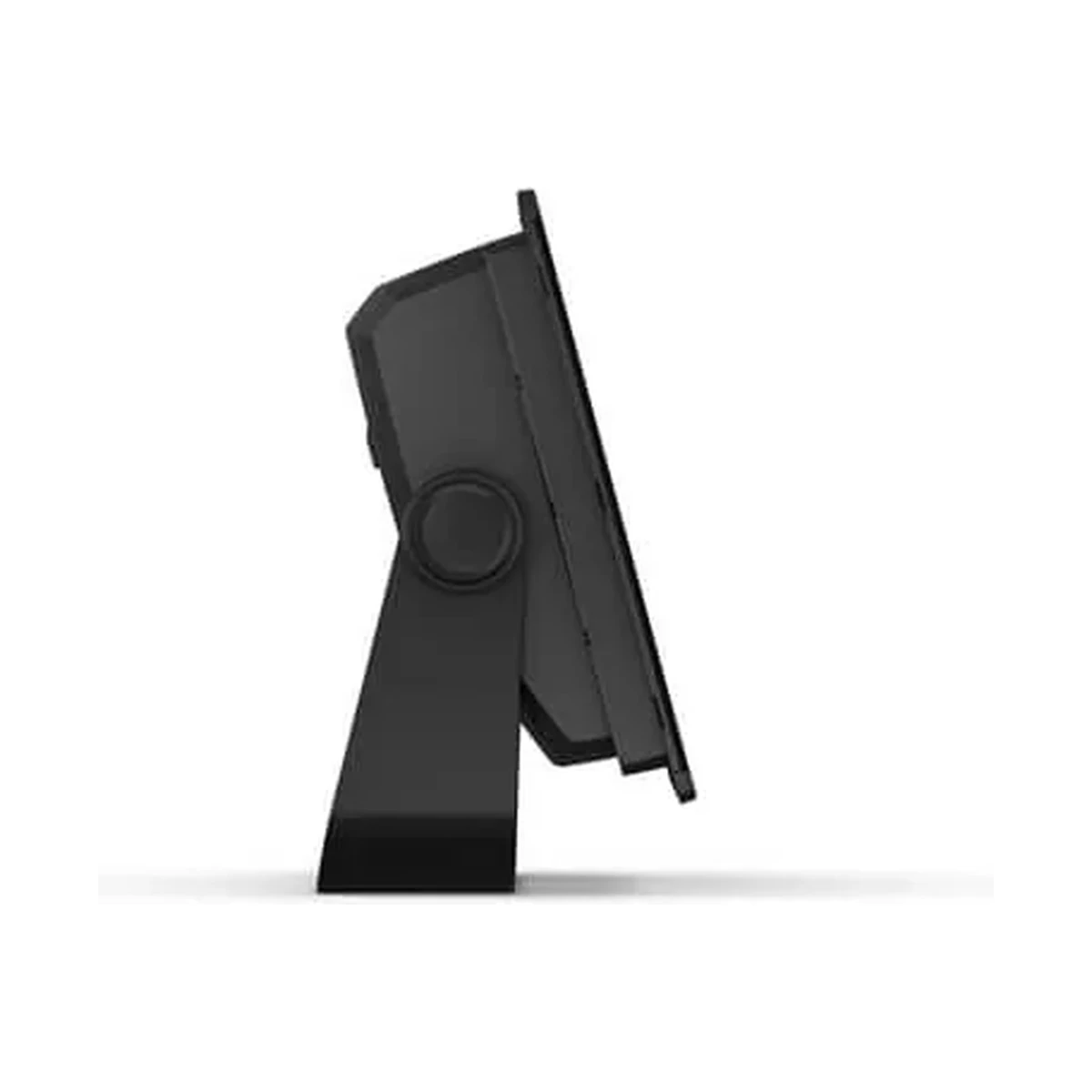

A 12.1-inch touchscreen marine multi-function display with built-in 1 kW CHIRP sonar, ClearVu/SideVu scanning, and HDMI video output for the helm.

Brand: Garmin
Category: Marine
Manufacturer: Garmin website ↗
Availability: Enquire for lead time

Technical

Specifications

Dimension	12.1” x 8.9” x 3.2” (30.8 x 22.8 x 8.2 cm)
Weight	6.6 lbs (3.0 kg)
Water rating	IPX7
Display type	WXGA, touchscreen
Display size	10.3" x 6.4"; 12.1" diagonal (26.2 x 16.3 cm; 30.7 cm diagonal)
Display resolution	1280 x 800 pixels
Accepts data cards	2 microSD cards (back of unit)
Waypoints	5000
Track points	50,000
Tracks	50 saved tracks
Navigation routes	100
Receiver	GPS, GLONASS, Galileo; 10 Hz, built-in, supports WAAS
Power input	10 to 32 Vdc
Typical current draw at 12 Vdc	1.68 A
Maximum current draw at 12 Vdc	3.56 A
Maximum power usage at 10 Vdc	43.0 W
Sonar power output	1 kW
Traditional sonar	built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVü	Built-in 260/455/800/1000/1200 kHz
SideVü	Built-in 260/455/800/1000/1200 kHz
Networking & connections	1 NMEA 2000 port, 1 NMEA 0183 input (Rx) port, 1 NMEA 0183 output (Tx) port, 1 video input port (BNC composite), 1 HDMI video output port, 1 J1939 port, 2 Garmin Marine Network ports, 1 12-pin transducer port, USB, BNC external GPS antenna port, Bluetooth pairing, ANT, Garmin Wi-Fi network (local connection)

Overview

About this product

The GPSMAP 1223xsv is a larger, 12.1 inch WXGA touchscreen multi-function display built for the helm, with an IPX7-rated housing and a 1280 x 800 pixel resolution. It carries a built-in GPS, GLONASS and Galileo receiver at 10 Hz with WAAS support alongside a built-in 1 kW CHIRP sonar with traditional, ClearVu and SideVu scanning up to 1200 kHz. It adds an HDMI video output and a BNC external GPS antenna port on top of the connectivity found on the smaller GPSMAP xsv models, with NMEA 2000, dual NMEA 0183 ports, a J1939 port, two Garmin Marine Network ports, a 12-pin transducer port, USB, Bluetooth, ANT and Wi-Fi. It supports up to 5,000 waypoints, 50 saved tracks and 100 routes, drawing a typical 1.68 A at 12 Vdc.

Questions

Frequently asked questions

What size is the display on the Garmin GPSMAP 1223xsv?

It has a 12.1 inch diagonal (30.7 cm) WXGA touchscreen display at 1280 x 800 resolution.

What GNSS systems does the GPSMAP 1223xsv's receiver support?

Its built-in receiver supports GPS, GLONASS, and Galileo at 10 Hz, with WAAS support.

What sonar does the GPSMAP 1223xsv include?

It has built-in traditional single channel CHIRP sonar (70/83/200 kHz, L, M, H CHIRP) plus built-in ClearVu and SideVu scanning sonar (260/455/800/1000/1200 kHz), with 1 kW of sonar power output.

Does the GPSMAP 1223xsv support HDMI output?

Yes, it includes 1 HDMI video output port among its networking and connections, alongside 1 NMEA 2000 port, 1 NMEA 0183 input (Rx) port, 1 NMEA 0183 output (Tx) port, 1 video input port (BNC composite), 1 J1939 port, 2 Garmin Marine Network ports, 1 12-pin transducer port, USB, a BNC external GPS antenna port, Bluetooth pairing, ANT, and Garmin Wi-Fi network.
