Garmin
GPSMAP 923xsv
A 9-inch touchscreen marine multi-function display combining GPS/GLONASS/Galileo positioning with built-in 1 kW CHIRP sonar, ClearVu and SideVu scanning.
- Brand
- Garmin
- Category
- Marine
- Manufacturer
- Garmin website ↗
- Availability
- Enquire for lead time
Technical
Specifications
| Dimension | 9.2" x 6.4" x 3" (23.3 x 16.2 x 7.6 cm) |
|---|---|
| Weight | 3.6 lbs (1.6 kg) |
| Water rating | IPX7 |
| Display type | WXGA, touchscreen |
| Display size | 7.8" x 4.4"; 9.0" diagonal (19.9 x 11.2 cm; 22.9 cm diagonal) |
| Display resolution | 1280 x 720 pixels |
| Accepts data cards | 2 microSD cards (back of unit) |
| Waypoints | 5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation routes | 100 |
| Receiver | GPS, GLONASS, Galileo; 10 Hz, built-in, supports WAAS |
| Power input | 10 to 32 Vdc |
| Typical current draw at 12 Vdc | 1.37 A |
| Maximum current draw at 12 Vdc | 3.20 A |
| Maximum power usage at 10 Vdc | 40.2 W |
| Sonar power output | 1 kW |
| Traditional sonar | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
| SideVü | Built-in 260/455/800/1000/1200 kHz |
| Networking & connections | 1 NMEA 2000 port, 1 NMEA 0183 input (Rx) port, 1 NMEA 0183 output (Tx) port, 1 video input port (BNC composite), 1 J1939 port, 1 Garmin Marine Network port, 1 12-pin transducer port, USB, Bluetooth pairing, ANT, Garmin Wi-Fi network (local connection) |
Overview
About this product

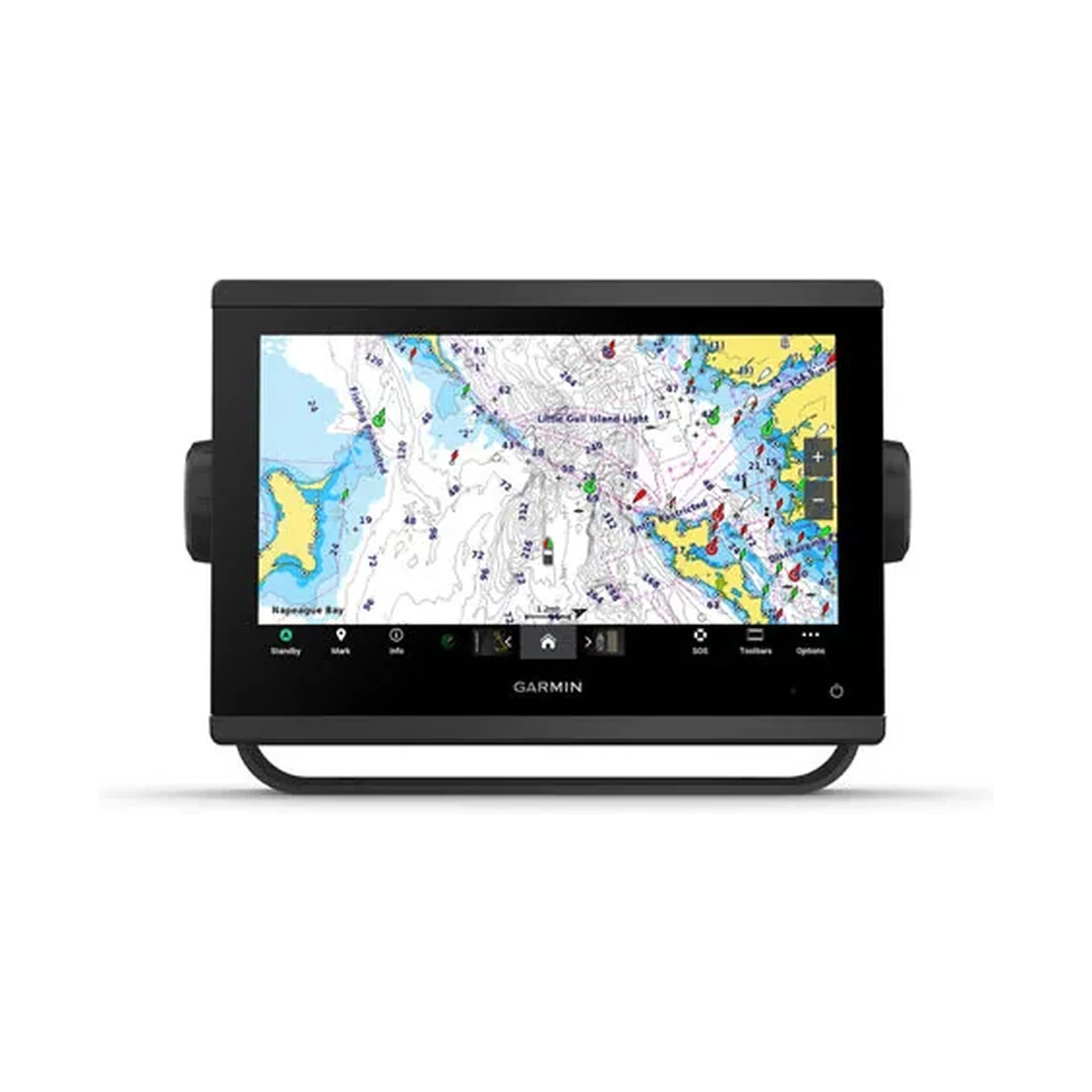

The GPSMAP 923xsv is a 9 inch WXGA touchscreen multi-function display for the helm, built into an IPX7-rated housing with a 1280 x 720 pixel resolution. It combines a built-in GPS, GLONASS and Galileo receiver running at 10 Hz with WAAS support, and pairs that positioning with a built-in 1 kW CHIRP sonar module offering traditional, ClearVu and SideVu scanning down to 1200 kHz. Connectivity runs to NMEA 2000, dual NMEA 0183 ports, a J1939 port, a video input, a 12-pin transducer port, USB, Bluetooth, ANT and the Garmin Marine Network, with two rear microSD slots for charts and data. It stores up to 5,000 waypoints, 50 saved tracks and 100 navigation routes, and draws a typical 1.37 A at 12 Vdc.
Questions
Frequently asked questions
What size is the display on the Garmin GPSMAP 923xsv?
It has a 9.0 inch diagonal (22.9 cm) WXGA touchscreen display at 1280 x 720 resolution.
What GNSS systems does the GPSMAP 923xsv's receiver support?
Its built-in receiver supports GPS, GLONASS, and Galileo at 10 Hz, with WAAS support.
What sonar does the GPSMAP 923xsv include?
It has built-in traditional single channel CHIRP sonar (70/83/200 kHz, L, M, H CHIRP) plus built-in ClearVu and SideVu scanning sonar (260/455/800/1000/1200 kHz), with 1 kW of sonar power output.
Is the GPSMAP 923xsv waterproof?
Yes, it carries an IPX7 water rating.
