Haiyang

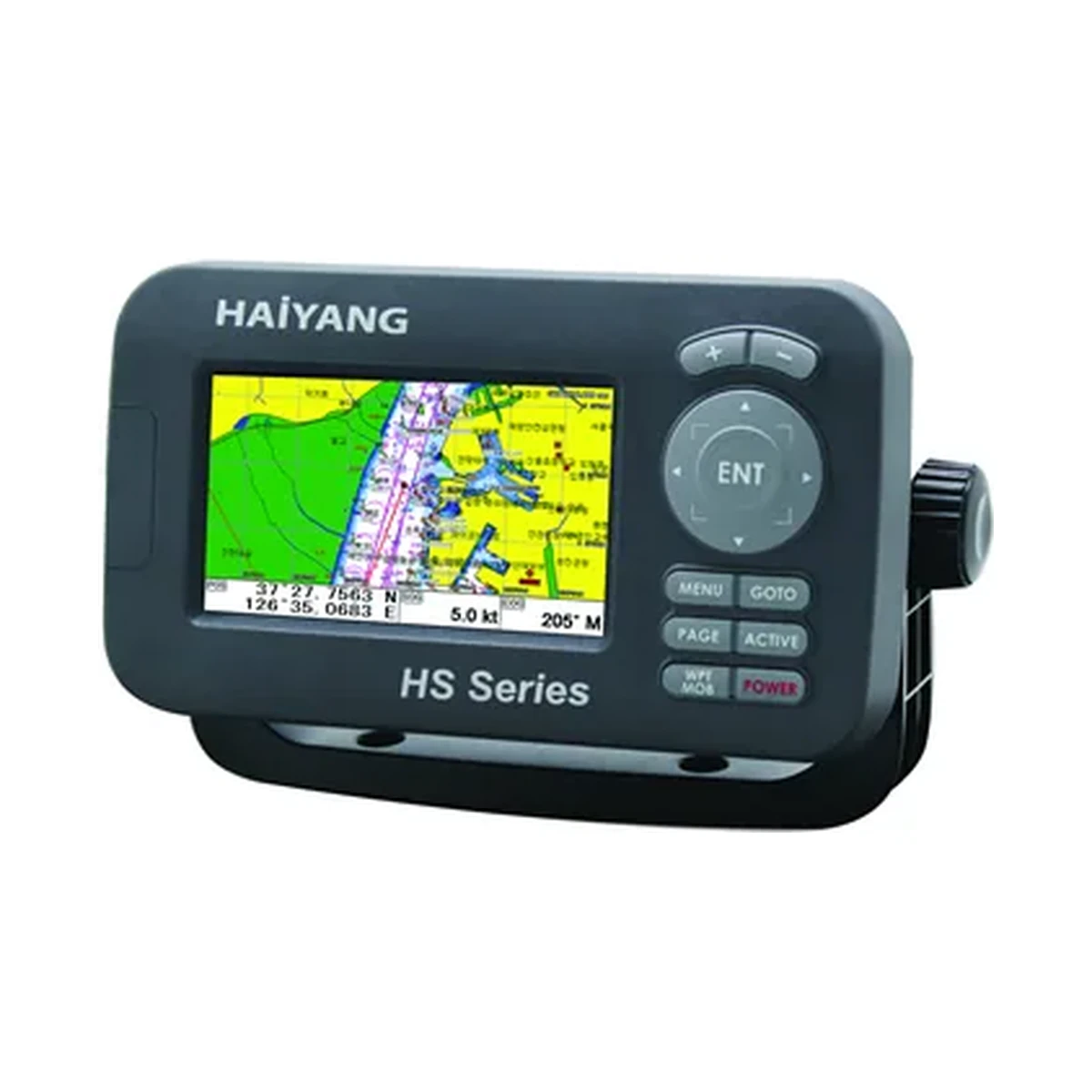

Haiyang HIS-55A
The Haiyang HIS-55A is a 5-inch color LCD AIS/GPS combo unit with a dual-receiver GMSK AIS transceiver and multi-constellation GNSS positioning, compliant with IEC 62287-1 and IMO Resolution MSC.112(73).
- Brand
- Haiyang
- Category
- Marine
- Availability
- Enquire for lead time
Technical
Specifications
| Display Screen | 5 inch color LCD with LED backlight |
|---|---|
| Resolution | WVGA (800 x 480 pixels) |
| Power Supply | DC 12V ~ 36V (±10%) |
| Operation Temperature (Display Unit) | -15°C ~ +50°C |
| Operation Temperature (Antenna Unit) | -25°C ~ +70°C |
| Performance Standard | IMO Resolution MSC.112(73) |
| Option | MicroSD, External GPS Antenna |
| GNSS Receiver Capabilities | GPS L1 C/A code, GLONASS L10F, QZSS L1 C/A code, Galileo E1B/E1C/L1 |
| Number of Channel | 52 channel over |
| Horizontal Positioning Accuracy (Autonomous) | 2.5m (CEP 50%) |
| Sensitivity | Acquisition -148 dBm, Tracking -165 dBm, Reacquisition -162 dBm |
| Nav Update | 1Hz, 5Hz |
| Support | DGPS, SBAS (EGNOS, WAAS, MASA, GAGAN, GLONASS) |
| Display Method | Mercator projection |
| Display Mode | True motion/N/S/E/W up/Course up/Head up |
| Latitude Limits | Between 85°N to 85°S |
| Map Scale | 0.05NM to 1,500NM |
| Map Datum | WGS-84 |
| Waypoint | 100,000 points (16 colors and 16 icons selectable per point with name tag, 8 alphanumeric characters) |
| Track Point | 50,000 points (2 types) |
| Route | Max capacity 100 Routes (20 WPTs per Route, each with name tags of 8 alphanumeric characters) |
| Draw Point | 1,000 points |
| Area Name | 1,000 points |
| Chart Data | HY-MAP (Built-in or External) |
| Output Data | NMEA-0183 |
| Input Data | NMEA-0183 |
| Alarm | Arrival, Anchor, XTE, Interval timer, Userline |
| AIS Standards | IEC62287-1 Ed3, ITU-R M.1371-5 |
| AIS Frequency | 156.025MHz to 162.025MHz |
| AIS Transmitter | X 1 |
| AIS Receiver | X 2 |
| AIS Channel Spacing | 25kHz |
| AIS Frequency Stability Rate | ±10PPM (-20°C ~ +60°C) |
| AIS Sensitivity | -107dBm (Message error rate: 20%) |
| AIS Display Stats | On, TX, RX1, RX2 |
| AIS Output Power | 2W or 4W |
| AIS Demodulation | GMSK |
Overview
About this product
The Haiyang HIS-55A combines a 5 inch color LCD (WVGA, 800 x 480) chartplotter with an integrated AIS transceiver built to IEC62287-1 Ed3 and ITU-R M.1371-5, running one transmitter and two receivers across 156.025MHz to 162.025MHz with 2W or 4W output and GMSK demodulation. Its 52-plus channel GNSS receiver covers GPS, GLONASS, QZSS, and Galileo signals with DGPS/SBAS augmentation and nav update rates up to 5Hz, storing up to 100,000 waypoints, 50,000 track points, and 100 routes on HY-MAP chart data. It meets IMO Resolution MSC.112(73) and runs on a DC 12V to 36V supply.
Questions
Frequently asked questions
Does the Haiyang HIS-55A combine a chartplotter with AIS?
Yes. It is a 5 inch color LCD chartplotter (WVGA, 800 x 480 pixels) with an integrated AIS transceiver: 1 transmitter and 2 receivers operating on 156.025MHz to 162.025MHz with 25kHz channel spacing.
What AIS output power does the HIS-55A support?
The HIS-55A's AIS transmitter can be configured for 2W or 4W output power, and it meets IEC62287-1 Ed3 and ITU-R M.1371-5 AIS standards.
What GNSS positioning does the Haiyang HIS-55A offer?
It receives GPS, GLONASS, QZSS and Galileo signals over 52-plus channels, with 2.5m (CEP 50%) autonomous horizontal accuracy and a navigation update rate of 1Hz or 5Hz.
How many waypoints can the HIS-55A store?
The HIS-55A stores up to 100,000 waypoints (16 colors and 16 icons per point), 50,000 track points, and up to 100 routes with 20 waypoints per route.
