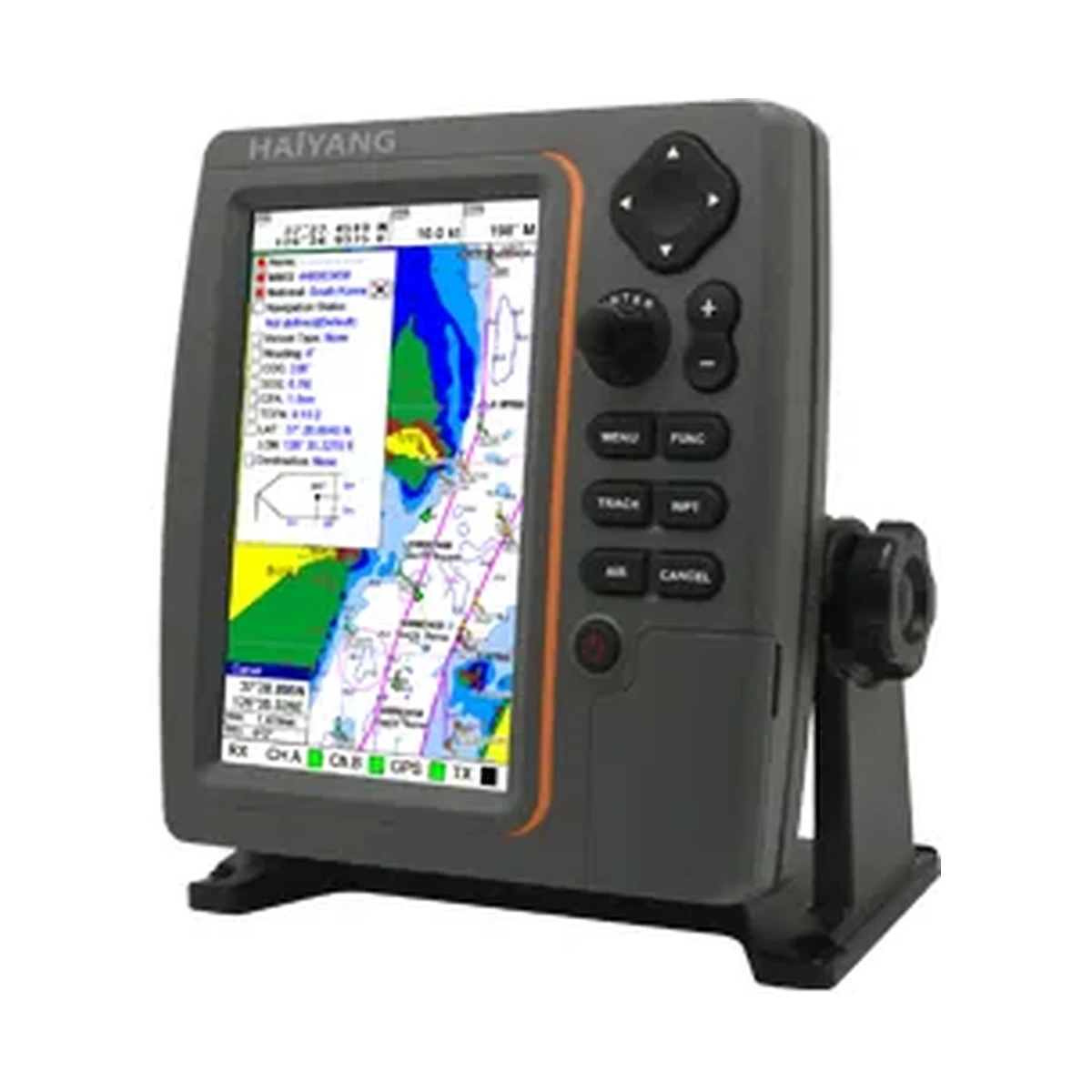

Haiyang HIS-70A
The Haiyang HIS-70A is a 7-inch Windows-based AIS/chartplotter combo with a 2W Class A-style AIS transceiver, GPS positioning, and IMO Resolution MSC.112(73) compliance.
- Brand
- Haiyang
- Category
- Marine
- Availability
- Enquire for lead time
Technical
Specifications
| Operating System | Microsoft Windows |
|---|---|
| Display Screen | Wide 7 inch color TFT LCD, LED back-light |
| Power Supply | DC 12V ~ 36V |
| Operation Temperature (Display Unit) | -15°C ~ +50°C |
| Operation Temperature (Antenna Unit) | -25°C ~ +70°C |
| Performance Standard | IMO Resolution MSC.112(73) |
| Display Method | Mercator projection |
| Display Mode | True motion/North up, Course-up/Head up |
| Latitude Limits | Between 85°N to 85°S |
| Map Scale | 0.05nm ~ 500nm |
| Map Datum | WGS-84 |
| Waypoint | 20,000 point |
| Track Point | 50,000 point |
| Chart Data | Built-in/C-MAP |
| Output Data | NMEA-0183 |
| Input Data | NMEA-0183 |
| Alarm | Interval timer AIS (CPA, TCPA) |
| AIS Dimension | 188mm x 200mm x 63.5mm |
| AIS Weight | 1.11Kg |
| AIS Connector | VHF ANT (PI-259), GPS ANT (BNC) |
| AIS Frequency | 156.025MHz ~ 162.025MHz (Default channel 88B, AIS 162.025MHz; Default channel 87B, AIS 161.975MHz) |
| AIS Channel Spacing | 25KHz |
| AIS Frequency Stability Rate | ±10PPM (-20°C ~ +60°C) |
| AIS Data Rate | 25kHz GMSK (AIS, TX and RX), 25kHz AFSK (DSC, RX only) |
| AIS Sensitivity | -107dBm (Message error rate: 20%) |
| AIS Display Stats | On, TX, RX1, RX2 |
| AIS Output Power | 2W (33dBm ± 1.5dB) |
| AIS Demodulation | GMSK |
| GPS Receive Frequency | L1 1575.42MHz (C/A) |
| GPS Number of Channel | 12 channel over |
| GPS Accuracy (Position) | 2.5m CEP |
| GPS Sensitivity | Acquisition -140 dBm, Tracking -149 dBm |
| GPS Data Update Rate | 1 Second |
Overview
About this product
The Haiyang HIS-70A runs a Microsoft Windows platform behind a wide 7 inch color TFT LCD, combining chart display with an integrated AIS transceiver operating across 156.025MHz to 162.025MHz with 2W (33dBm) output power and GMSK demodulation. Its dedicated GPS receiver covers 12-plus channels at L1 1575.42MHz with 2.5m CEP accuracy and a 1 second update rate, while the chartplotter side stores 20,000 waypoints and 50,000 track points using built-in or C-MAP chart data. It meets IMO Resolution MSC.112(73), weighs 1.11kg, and runs on a DC 12V to 36V supply.
Questions
Frequently asked questions
Is the Haiyang HIS-70A an AIS transponder?
Yes. It is a Class A-style AIS unit with a 2W (33dBm ± 1.5dB) transmitter, operating over 156.025MHz to 162.025MHz with 25kHz channel spacing and GMSK demodulation.
What display does the Haiyang HIS-70A use?
The HIS-70A has a wide 7 inch color TFT LCD with LED backlight and runs on a Microsoft Windows operating system.
What is the physical size and weight of the HIS-70A AIS unit?
The AIS unit measures 188mm x 200mm x 63.5mm and weighs 1.11kg.
What GPS accuracy does the HIS-70A provide?
The HIS-70A's GPS receiver provides 2.5m CEP position accuracy over 12-plus channels, with a 1 second data update rate.
