Icom

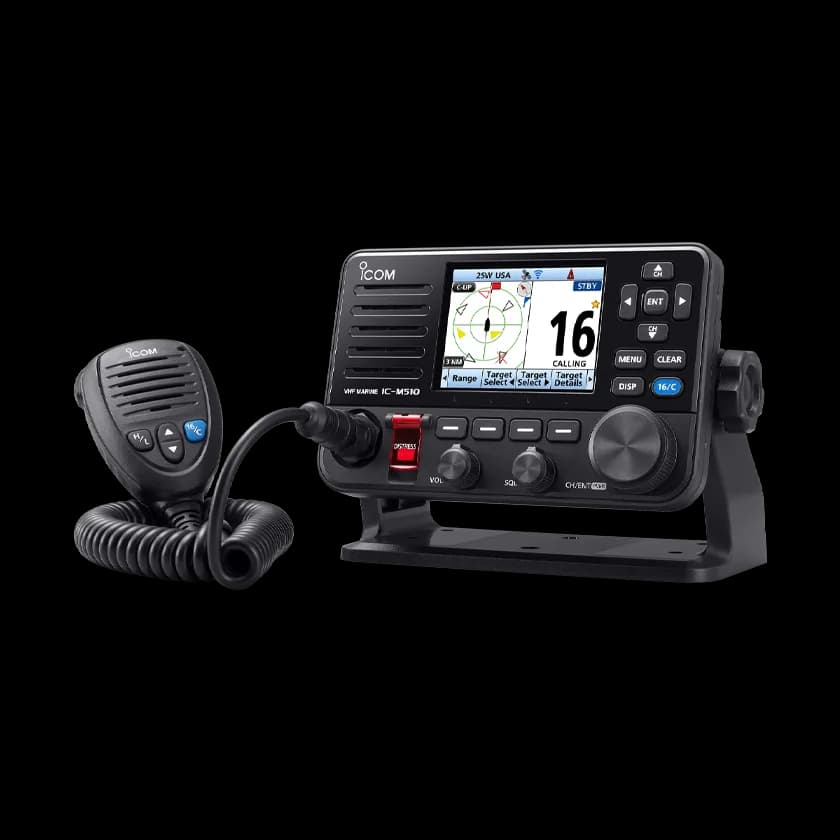

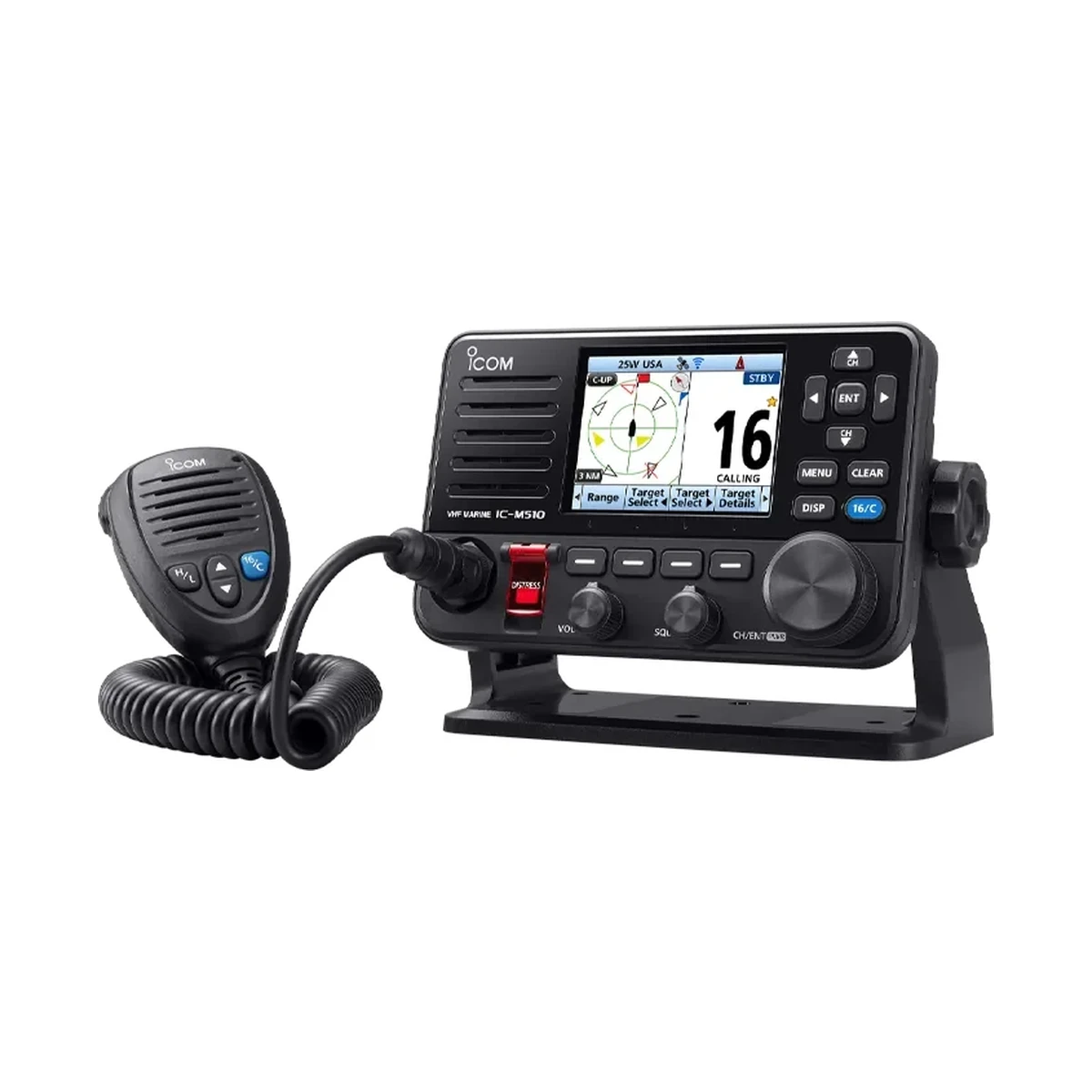

Flagship fixed-mount VHF/DSC radio from Icom, an evolution of the IC-M510 Class D with Wi-Fi connectivity and RemoteCommander wireless control.
Technical
| Frequency range TX | 156.025 ~ 157.425 MHz |
|---|---|
| Frequency range RX | 156.050 ~ 163.275 MHz |
| DSC | 156.525 MHz |
| AIS1, 2 | 161.975, 162.025 MHz |
| Usable channels | USA, CAN, INT, WX channels |
| Type of emission | 16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS) |
| Power supply requirement | 13.8 V DC (11.7 ~ 15.9 V DC) |
| Current drain TX 25 W output | 5.0 A |
| Current drain RX Max. audio | 1.6 A |
| Current drain RX Max. audio with HM-195 | 2.0 A |
| Current drain RX Max. audio with extSP | 4.0 A |
| Current drain RX Max. audio with ext SP, RX hailer, and HM-195 | 7.3 A |
| Operating temperature range | –20°C ~ +60°C, –4°F ~ +140°F |
| Antenna impedance | 50 Ω |
| Dimensions (W x D x H) | 175 x 110 x 53 mm, 6.8 x 4.3 x 2.1 in |
| Weight (approx.) | 730 g, 1.6 lb (not including microphone) |
| Output power (at 13.8 V DC) | 25 W, 1W |
| Max. frequency deviation | ±5 kHz |
| Frequency tolerance | ±0.5 kHz |
| Spurious emissions | Less than −70 dBc (at 25 W) |
| Residual modulation | More than 40 dB |
| Adjacent channel power | More than 70 dB |
| Sensitivity (at 12 dB SINAD) | –10 dBμ typical |
| Sensitivity DSC (1% BER) | –1 dBμ emf typical |
| Adjacent channel selectivity | More than 75 dB |
| Adjacent channel selectivity DSC (1% BER) | More than 73 dBμ emf |
| Spurious response | More than 75 dB |
| Spurious response DSC (1% BER) | More than 73 dBμ emf |
| Intermodulation | More than 75 dB |
| Intermodulation DSC (1% BER) | More than 68 dBμ emf |
| Hum and noise | More than 40 dB |
| Audio output power (at 10% distortion with 4 Ω) | More than 15 W (external speaker) |
| Audio output power RX Hailer | 20 W typical |
| Audio output power Hailer | 25 W typical |
| Wireless LAN standard | IEEE802.11 b/g/n |
| Authentication and Encryption | WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES) |
| Channels (Wi-Fi) | 1 to 13 (2.4 GHz band) |
| Output power (Wi-Fi) | Less than 10 mW/MHz |
Overview
The IC-M510EVO is Icom’s flagship fixed-mount marine VHF, an evolution of the established IC-M510 Class D DSC radio with Wi-Fi connectivity added on top. It pairs with Icom’s RemoteCommander app to put full radio control, channel selection, DSC calling, AIS target display, on a connected phone or tablet anywhere aboard, rather than confining operation to the helm unit itself. As a Class D DSC set it meets the current carriage-relevant DSC standard, and its position in Icom’s range as the evolved successor to the M510 reflects a genuine feature step up, not a cosmetic refresh, for a bridge or flybridge installation that wants wireless control alongside its fixed VHF.
Questions
It transmits at 25 W or 1 W at 13.8 V DC.
Yes. It has a hailer output of 25 W typical, and an RX hailer function rated at 20 W typical.
Yes, it includes IEEE802.11 b/g/n wireless LAN with WEP, WPA-PSK and WPA2-PSK support.
Approximately 730 g (1.6 lb), not including the microphone.
