Icom
MA-510TR
Icom MA-510TR Class B AIS transponder with integrated 72-channel GPS receiver and DSC monitoring on channel 70.
- Brand
- Icom
- Category
- Marine
- Manufacturer
- Icom website ↗
- Availability
- Enquire for lead time
Technical
Specifications
| Operating frequencies | 161.500 MHz to 162.025 MHz |
|---|---|
| Type of emission | 16K0GXW (GMSK) |
| Antenna impedance | 50 Ω nominal |
| Intermediate frequency CH-A | 1st: 21.700 MHz, 2nd: 450 kHz |
| Intermediate frequency CH-B | 1st: 30.150 MHz, 2nd: 450 kHz |
| Operating temperature range | –20°C to +60°C; –4°F to +140°F |
| Power supply requirement | Negative ground: 12 V or 24 V DC nominal (9.6 to 31.2 V) |
| Current drain (at 12 V DC) | TX: 1.5 A, RX: 0.7 A |
| Dimensions (approximate) | 166.2 (W) × 110.2 (H) × 92.5 (D) mm; 6.5 (W) × 4.3 (H) × 3.6 (D) inch |
| Weight (approximate) | 700 g, 1.5 lb |
| Output power | 2 W |
| Modulation | 16K0GXW (GMSK) |
| Conducted spurious emission (Transmitter) | Less than –36 dBm (9 kHz–1 GHz); Less than –30 dBm (1 GHz–4 GHz) |
| AIS Receiver sensitivity | Less than –110 dBm |
| AIS Adjacent channel selectivity | More than –31 dBm |
| AIS Spurious response | More than –31 dBm |
| AIS Intermodulation | More than –36 dBm |
| AIS Conducted spurious emission | Less than –57 dBm (9 kHz–1 GHz); Less than –47 dBm (1 GHz–4 GHz) |
| AIS Blocking | More than –23 dBm (±0.5 MHz–±5 MHz); More than –15 dBm (±5 MHz–±10 MHz) |
| AIS Co-channel | More than –111 dBm |
| DSC Frequency coverage | 156.525 MHz |
| DSC Type of emission | 16K0G2B |
| DSC Sensitivity | Less than –110 dBm |
| DSC Adjacent channel selectivity | More than 70 dB |
| DSC Spurious response | More than –34 dBm |
| DSC Intermodulation | More than –39 dBm |
| DSC Blocking | More than –20 dBm |
| GPS Received frequency | 1575.42 MHz |
| GPS Acquisition | 72 ch (maximum) |
| GPS Differential satellites | WAAS, EGNOS, MSAS, GAGAN |
| GPS Antenna dimensions (approximate) | 96.2 × 225 (H) mm; 3.8 × 8.9 (H) inch |
| GPS Antenna weight (approximate) | 700 g, 1.5 lb (including cable and mounting bracket) |
| GPS Antenna cable length (approximate) | 10 m, 32.8 ft |
Overview
About this product

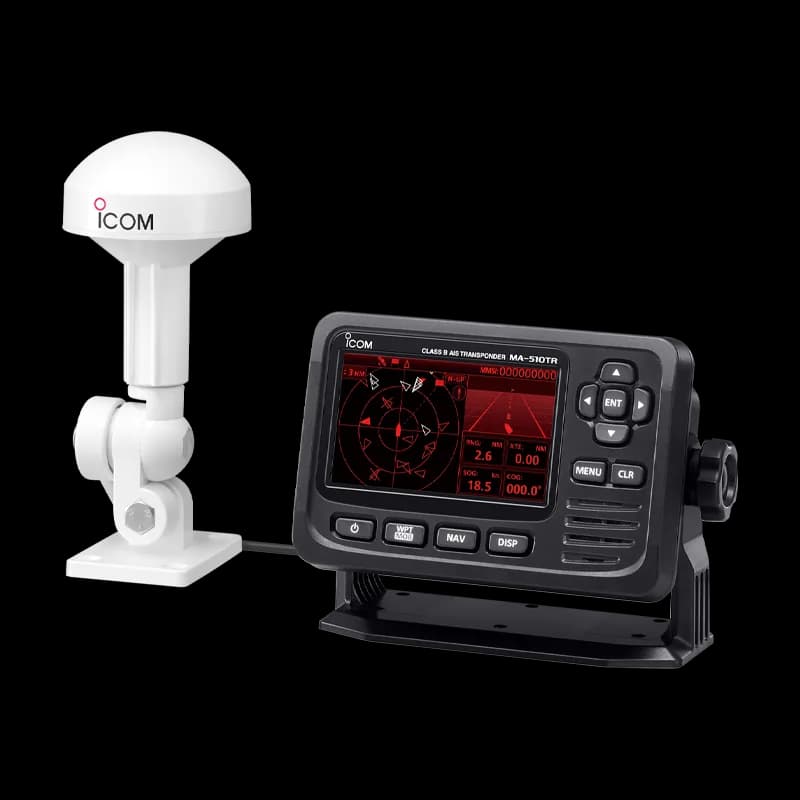

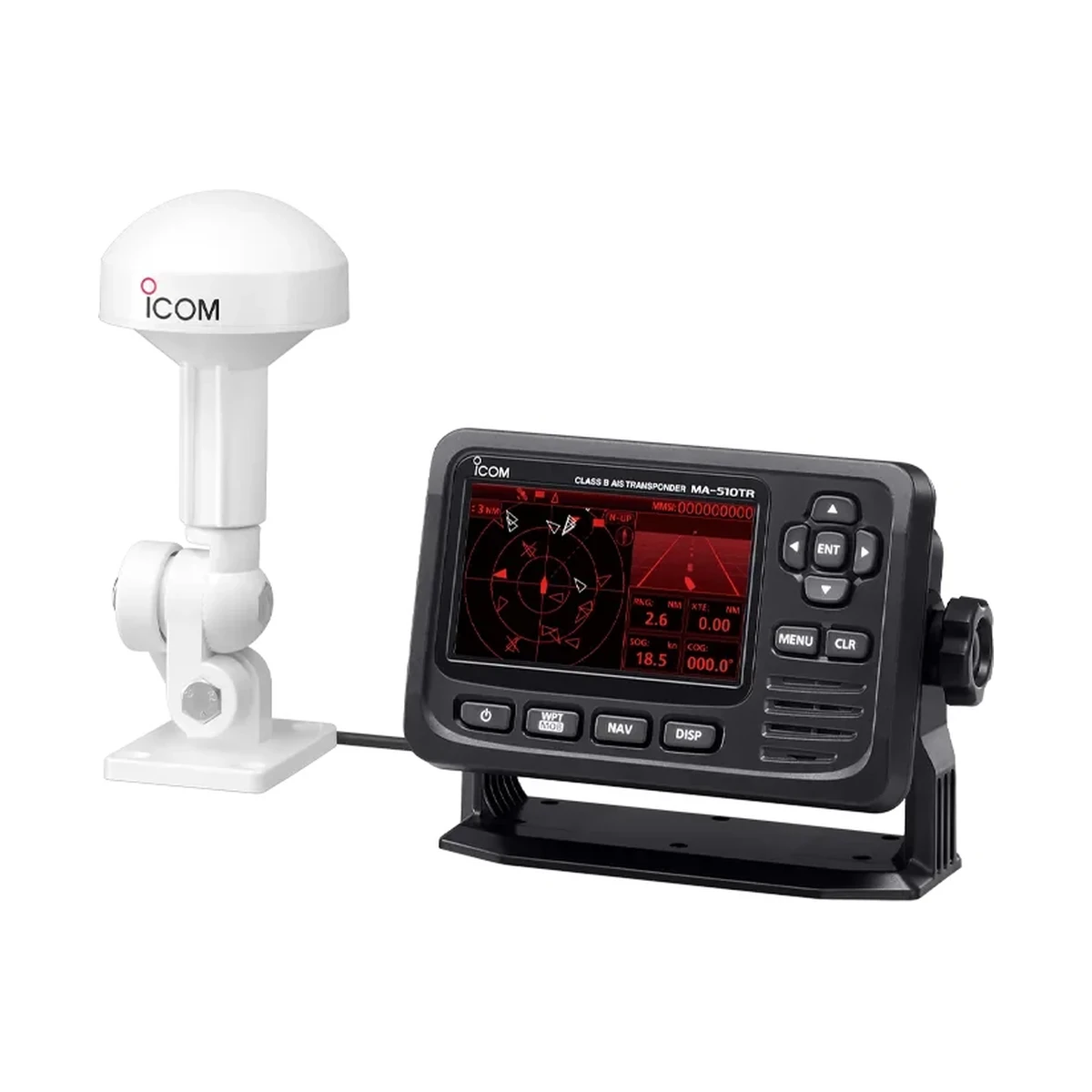

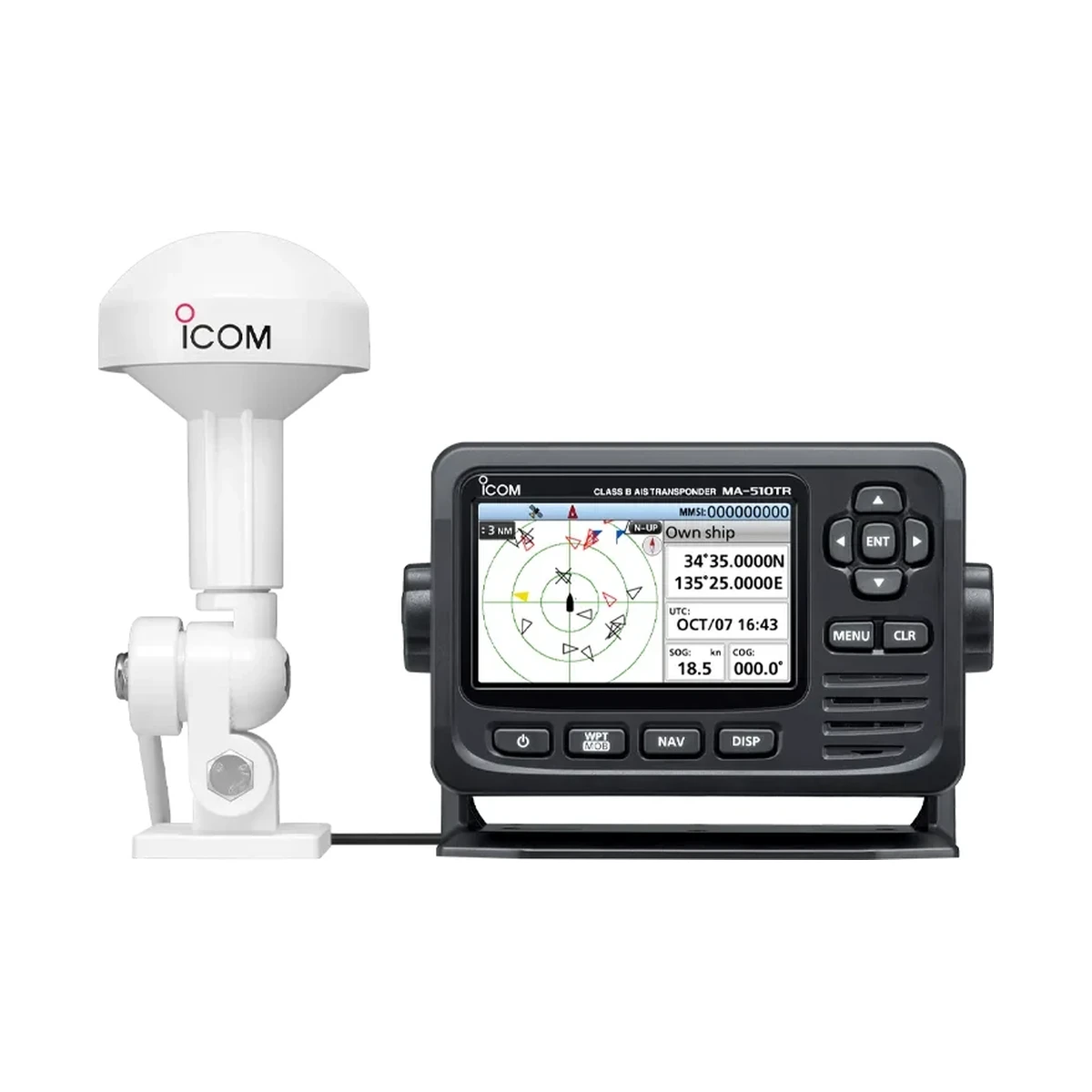

The MA-510TR is a Class B AIS transponder that transmits and receives on the AIS channels between 161.500 and 162.025MHz using GMSK modulation, with an integrated DSC receiver on channel 70 (156.525MHz) for distress alert monitoring. It includes a built-in 72-channel GPS receiver supporting WAAS, EGNOS, MSAS and GAGAN differential correction, supplied with a dedicated GPS antenna on a 10 metre cable. The transponder outputs 2W, runs from a 12V or 24V DC supply drawing 1.5A on transmit, and weighs 700g in a 166.2 x 110.2 x 92.5mm housing.
Questions
Frequently asked questions
What frequencies does the Icom MA-510TR AIS transponder operate on?
It operates on 161.500-162.025 MHz for AIS, with dedicated DSC on 156.525 MHz.
What is the transmit power of the MA-510TR?
The MA-510TR transmits at 2 W.
Does the MA-510TR have a built-in GPS?
Yes. Its GPS acquires up to 72 channels and supports WAAS, EGNOS, MSAS and GAGAN differential corrections.
What power supply does the MA-510TR need?
It runs on a negative-ground 12 V or 24 V DC nominal supply, with an input range of 9.6 to 31.2 V.
