SkyNav
AT-206 AIS Buoy Tracker
A larger AIS buoy tracker broadcasting on the marine AIS band with over a year of runtime from its rechargeable Li-ion battery.
- Brand
- SkyNav
- Category
- Marine
- Availability
- Enquire for lead time
Technical
Specifications
| Quad Band | 161.975 MHz / 162.025 MHz |
|---|---|
| Output Power | 2 W |
| Battery | 12.6V 3200 mAh |
| Battery Type | Rechargeable Li-ion battery |
| Operating time | Over than 1 year (reporting interval: 3 min) |
| Size (Main Body) | 19.7 cm x 21.2 cm |
| Weight (Main Body) | 850g |
| Waterproof | IPX8 |
| Operating Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
Overview
About this product

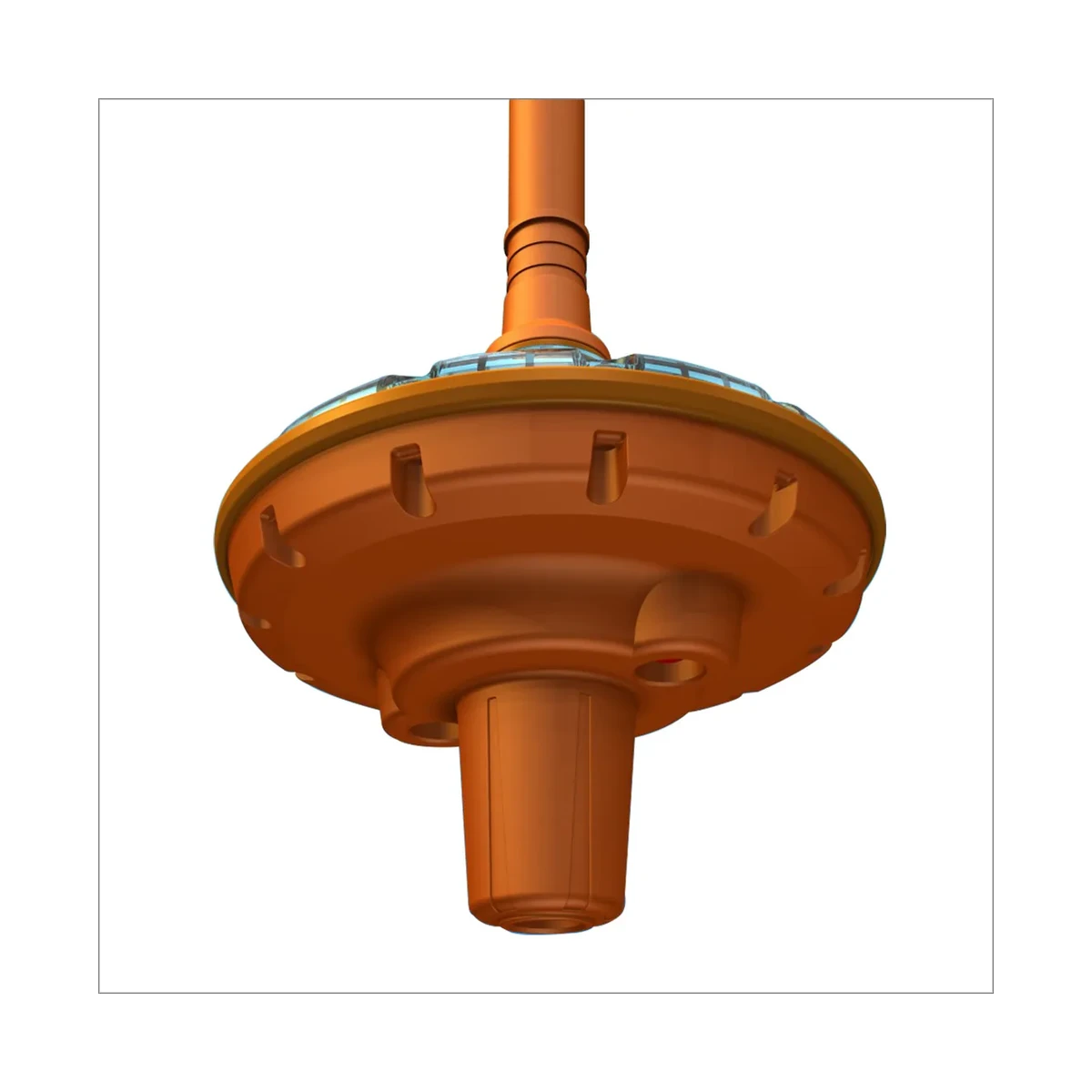

The AT-206 AIS Buoy Tracker is an AIS position tracker for buoys and marker floats, transmitting on the standard AIS quad-band frequencies of 161.975 and 162.025 MHz at 2 W output power. It runs on a rechargeable 12.6 V, 3200 mAh Li-ion battery, rated for over a year of operation at a 3 minute reporting interval. Larger than the AT-102, its main body measures 19.7 x 21.2 cm and weighs 850 g, and it is rated IPX8 for waterproofing with an operating temperature range from minus 10 to 60 degrees C.
Questions
Frequently asked questions
How long does the SkyNav AT-206 buoy tracker run on a single charge?
Its 12.6V, 3200 mAh Li-ion battery is rated for over 1 year at a 3-minute reporting interval.
Is the AT-206 waterproof?
Yes, it carries an IPX8 rating.
How much does the AT-206 weigh?
The main body weighs 850g.
