VHF Analog Transceivers Little Radio, Big Sound! Class Leading 1500 mW Audio General Features Enhanced emergency safety with built-in motion/stationary detection sensor 128 channel capacity with eight zones (Simple type and ten-key type) Built-in 2-Tone…
Technical
| Frequency coverage | 136 ~ 174 MHz |
|---|---|
| Number of channels (with LCD) | 128 channels / 8 zones |
| Number of channels (without LCD) | 16 channels |
| Type of emission (EUR) | 16K0F3E/14K0F3E/8K50F3E |
| Type of emission (EXP/AUS) | 16K0F3E/8K50F3E |
| Type of emission (EXP/CAN) | 16K0F3E/11K0F3E |
| Power supply requirement | 7.5 V DC nominal |
| Current drain (Tx) | 1.3 A |
| Current drain (Rx, max audio, internal SP) | 500 mA |
| Current drain (Rx, standby) | 70 mA |
| Antenna impedance | 50Ω |
| Operating temperature range | –30°C to +60°C |
| Dimensions (W×H×D, with BP-279) | 52.2 × 111.8 × 24.5 mm |
| Dimensions (W×H×D, with BP-280) | 52.2 × 111.8 × 30.3 mm |
| Weight (with BP-279) | 240 g |
| Weight (with BP-280) | 270 g |
| Output power (Hi, L2, L1) | 5 W, 2 W, 1 W |
| Maximum frequency deviation (W/M/N) | ±5.0 kHz / ±4.0 kHz / ±2.5 kHz |
| Spurious emissions (EUR/EXP/AUS) | 0.25 μW (≤1 GHz), 1.0 μW (>1 GHz) |
| Frequency stability | ±2.5 ppm |
| Adjacent channel power (EUR, W/M/N) | 82 dB / 81 dB / 78 dB typ. |
| Audio harmonic distortion (1 kHz, 40% deviation) | 1.0% typ. |
| FM hum and noise (with CCITT, EUR, W/M/N) | 70 dB / 70 dB / 69 dB typ. |
| Sensitivity (12 dB SINAD) | 0.20 μV typ. |
| Adjacent channel selectivity (EUR, W/M/N) | 76 dB / 74 dB / 72 dB typ. |
| Spurious response rejection | 70 dB min. |
| Intermodulation rejection (EUR) | 65 dB min. |
| Hum and noise (with CCITT, EUR, W/M/N) | 58 dB / 57 dB / 53 dB typ. |
| AF output power (internal SP, 5% distortion, 8Ω) | 1500 mW typ. |
| AF output power (external SP, single end) | 400 mW typ. |
| AF output power (external SP, BTL) | 1500 mW typ. |
| External speaker connector | 2-conductor 3.5 (d) mm / 8 Ω |
| External microphone connector | 3-conductor 2.5 (d) mm / 2.2 kΩ |
Overview

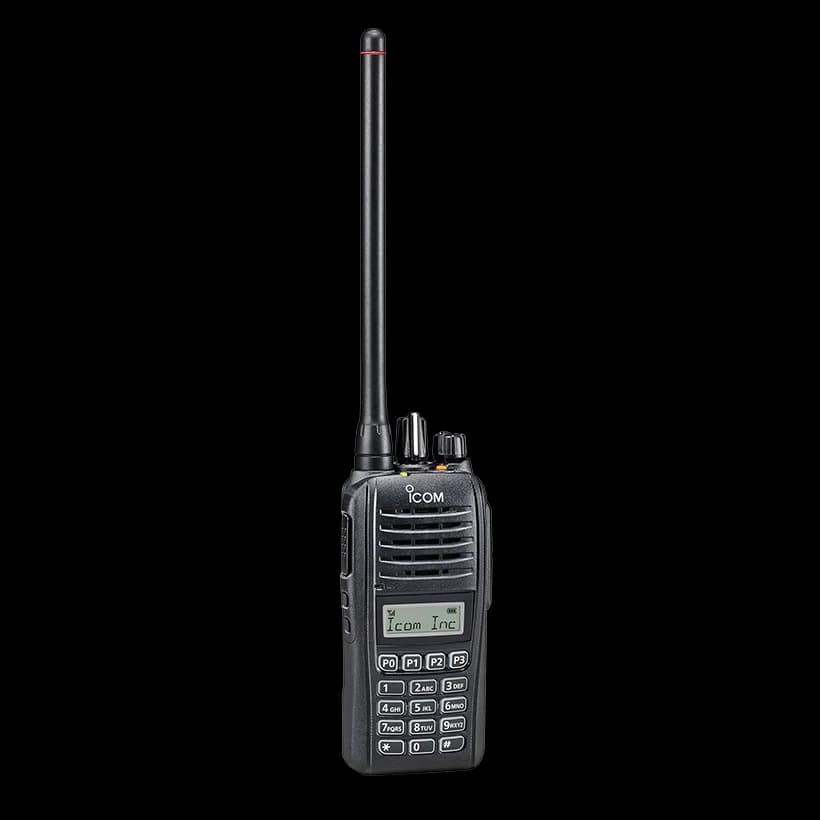

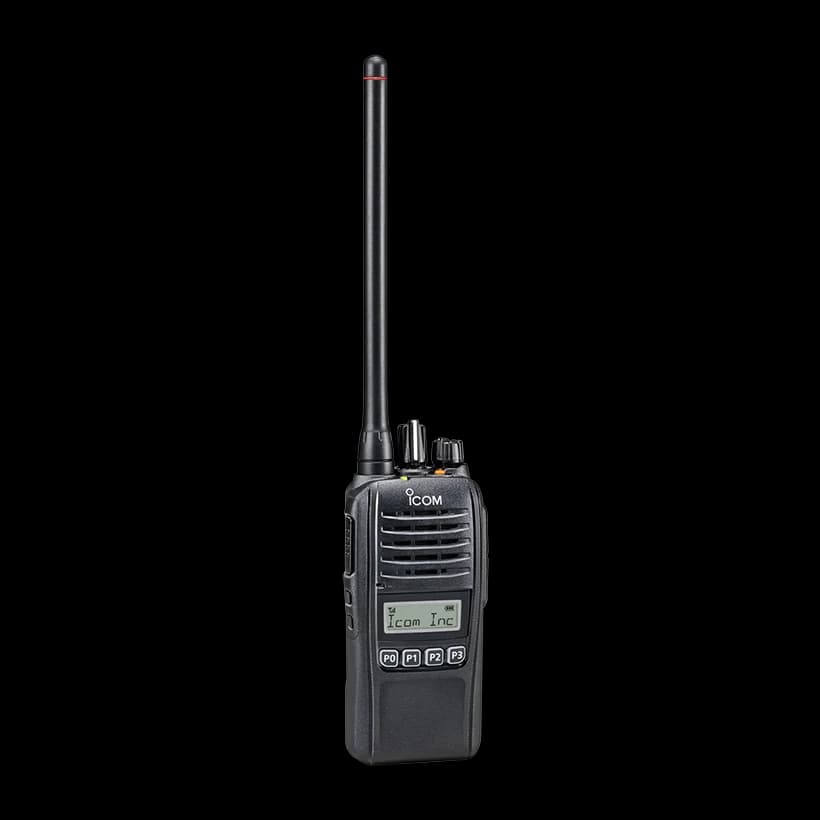

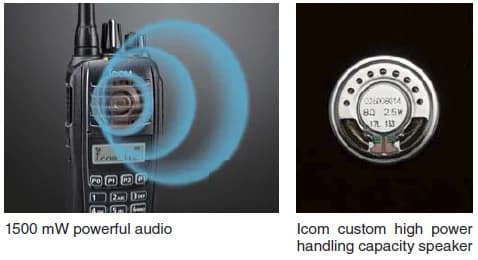

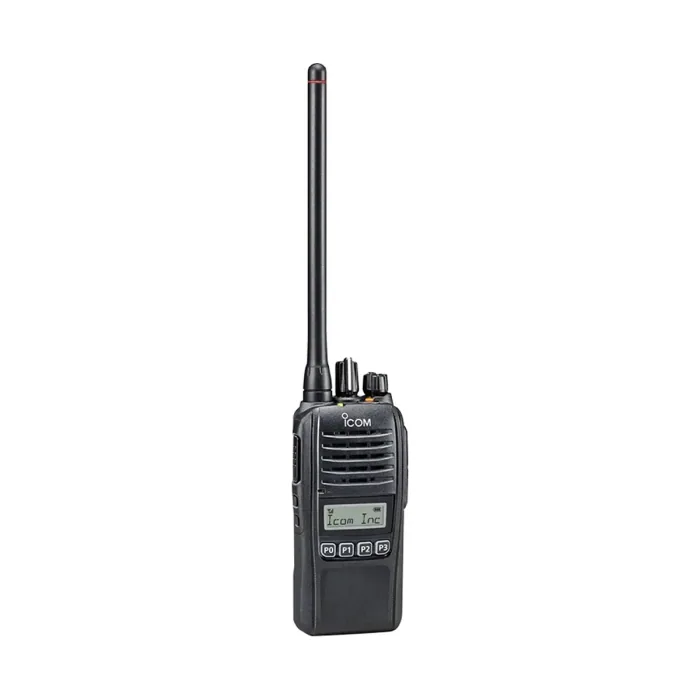

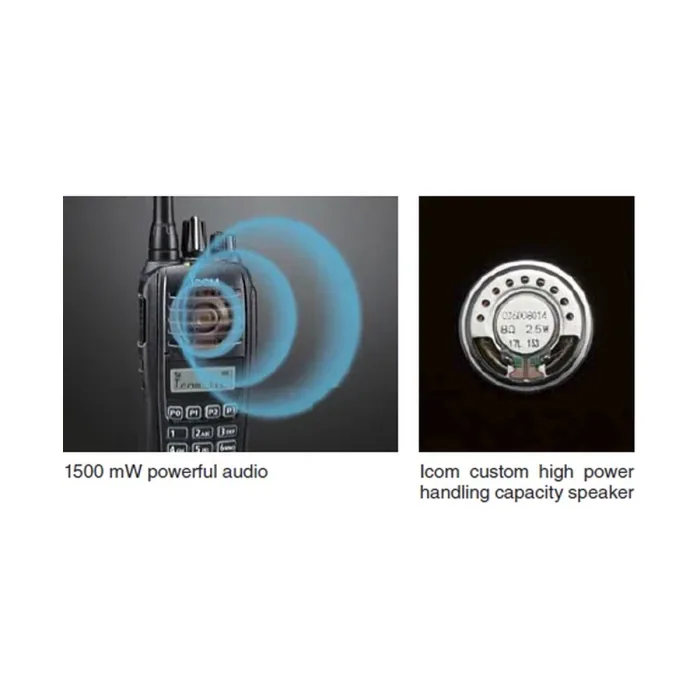

The IC-F1000/F2000 series provides class leading 1500 mW loud and clear audio with Icom custom high power handling capacity speaker. It offers a compact, waterproof durable design and is full of great features such as motion/stationary detection sensor, man down, voice scrambler and voice announcement functions. The radio is ideal for business and industry users who require economical value and reliability in a radio.
