Icom

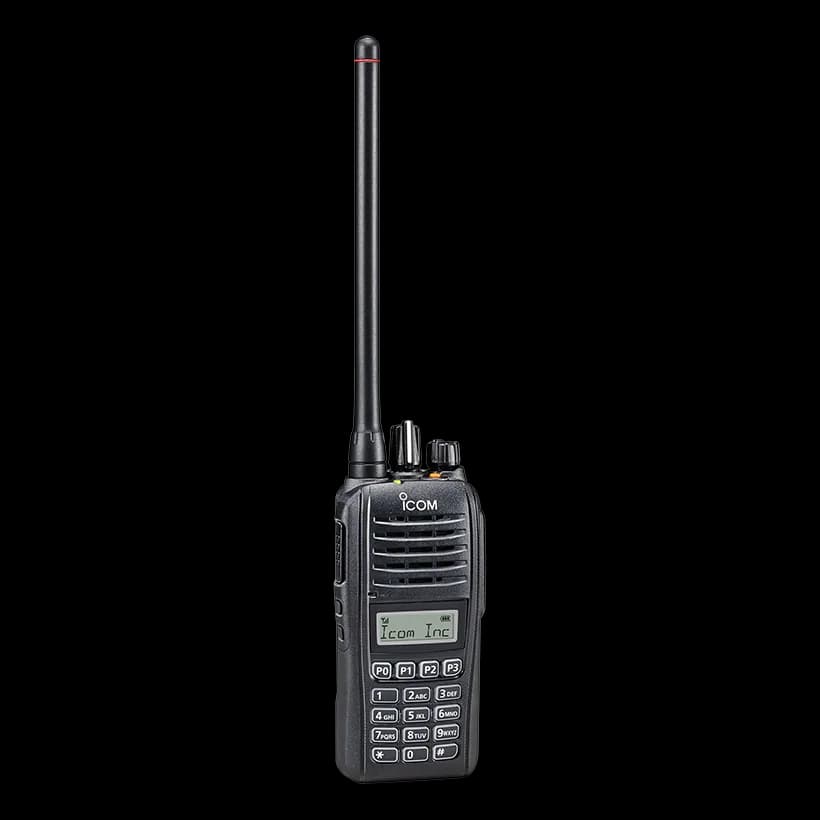

Entry-level digital handheld radios covering VHF 136-174 MHz and UHF 350-520 MHz, available in 128-channel display and 16-channel non-display versions.
Technical
| Frequency coverage | 136–174, 350–400, 400–470, 450–512, 450–520 MHz versions |
|---|---|
| Number of channels | 128 channels/8 zones (LCD types); 16 channels (non-display types) |
| Type of emission (USA) | 11K0F3E, 4K00F1E, 4K00F1D |
| Power supply requirement | 7.5V DC nominal |
| Current drain (Tx) - F1100 | 1.3A |
| Current drain (Tx) - F2100 | 1.6A at 5W, 1.4A at 4W |
| Current drain (Rx) | 520 mA max audio/110 mA standby |
| Antenna impedance | 50Ω |
| Operating temperature (USA/EXP) | –30°C to +60°C; –22°F to +140°F |
| Dimensions (IC-F1100DS/D, IC-F2100DS/D) | 52.2 × 111.8 × 29.4 mm; 2.1 × 4.4 × 1.2 in |
| Weight | 258g–277g depending on model |
| Output power (F1100) | 5W, 2W, 1W |
| Output power (F2100) | 5W, 2W, 1W VHF, 4W, 2W, 1W UHF 350–400MHz |
| Maximum frequency deviation | ± 5.0 kHz (25 kHz), ±4.0 kHz (20 kHz), ±2.5 kHz (12.5 kHz) |
| Spurious emissions (USA/EXP) | 70 dB minimum |
| Frequency stability (F1100) | ±2.0 ppm |
| Frequency stability (F2100) | ±1.0 ppm |
| Sensitivity (Analog 12dB SINAD) | 0.24 μV typical |
| Sensitivity (Digital 5% BER) - F1100 | –9 dBμV typical |
| Sensitivity (Digital 5% BER) - F2100 | –8 dBμV typical |
| AF output power (Internal speaker) | 1500 mW typical |
| External speaker connector | 2-conductor 3.5 (d) mm (1⁄8 in)/8 Ω |
Overview
The IC-F1100D and IC-F2100D are entry-level digital handheld radios spanning VHF 136-174 MHz and UHF 350-520 MHz, offered in both 128-channel/8-zone display versions and simpler 16-channel non-display versions. Output power is 5 W, 2 W, or 1 W on the VHF F1100D, and up to 5 W or 4 W on the UHF F2100D depending on band, with analog sensitivity of 0.24 μV typical and digital sensitivity down to -8 or -9 dBμV. Weighing between 258 g and 277 g depending on configuration, both models are rated to operate from -30°C to +60°C.
Questions
They are available in 136-174 MHz, 350-400 MHz, 400-470 MHz, 450-512 MHz and 450-520 MHz versions.
The IC-F1100D transmits at 5 W, 2 W or 1 W. The IC-F2100D transmits at 5 W, 2 W or 1 W on VHF, and 4 W, 2 W or 1 W on the 350-400 MHz UHF band.

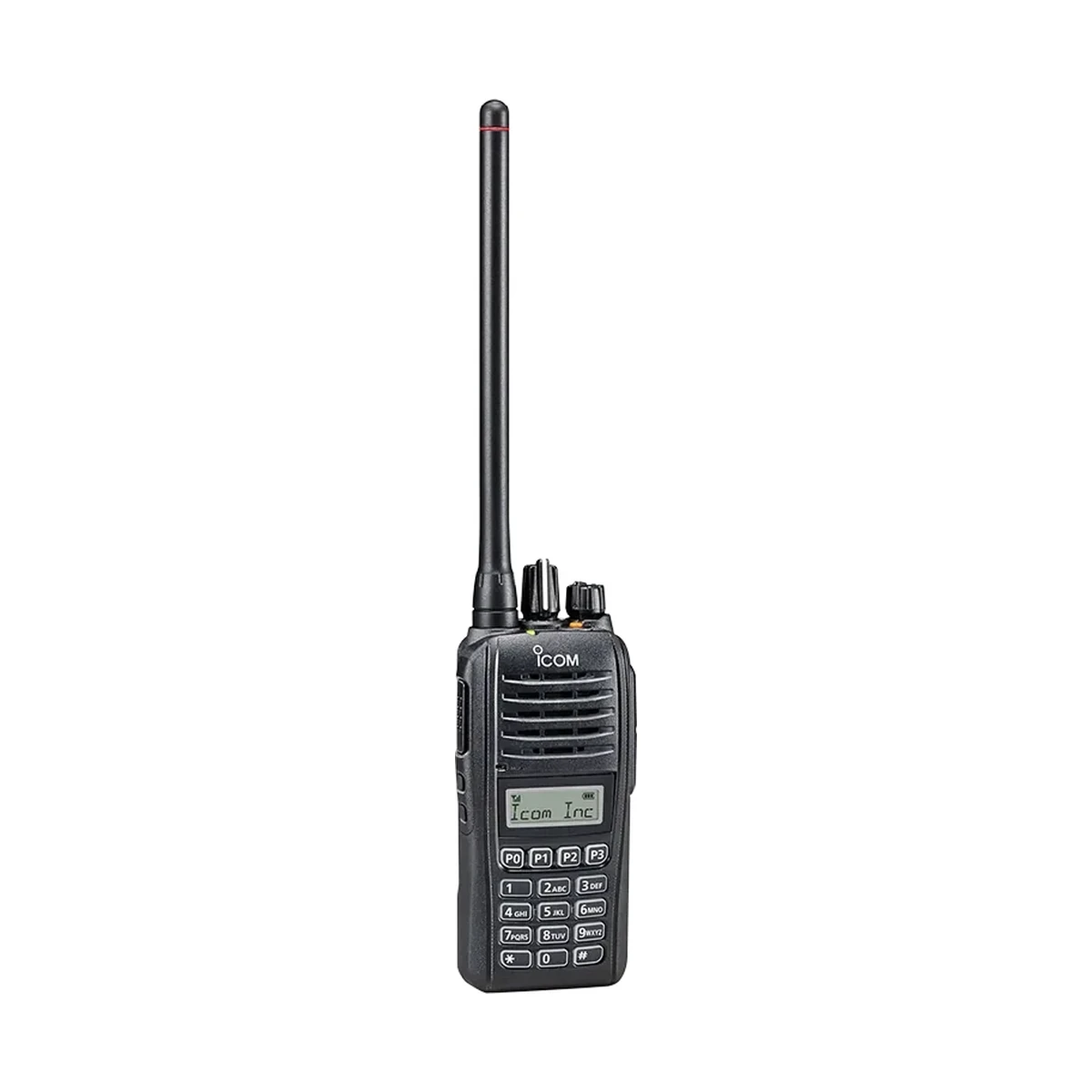

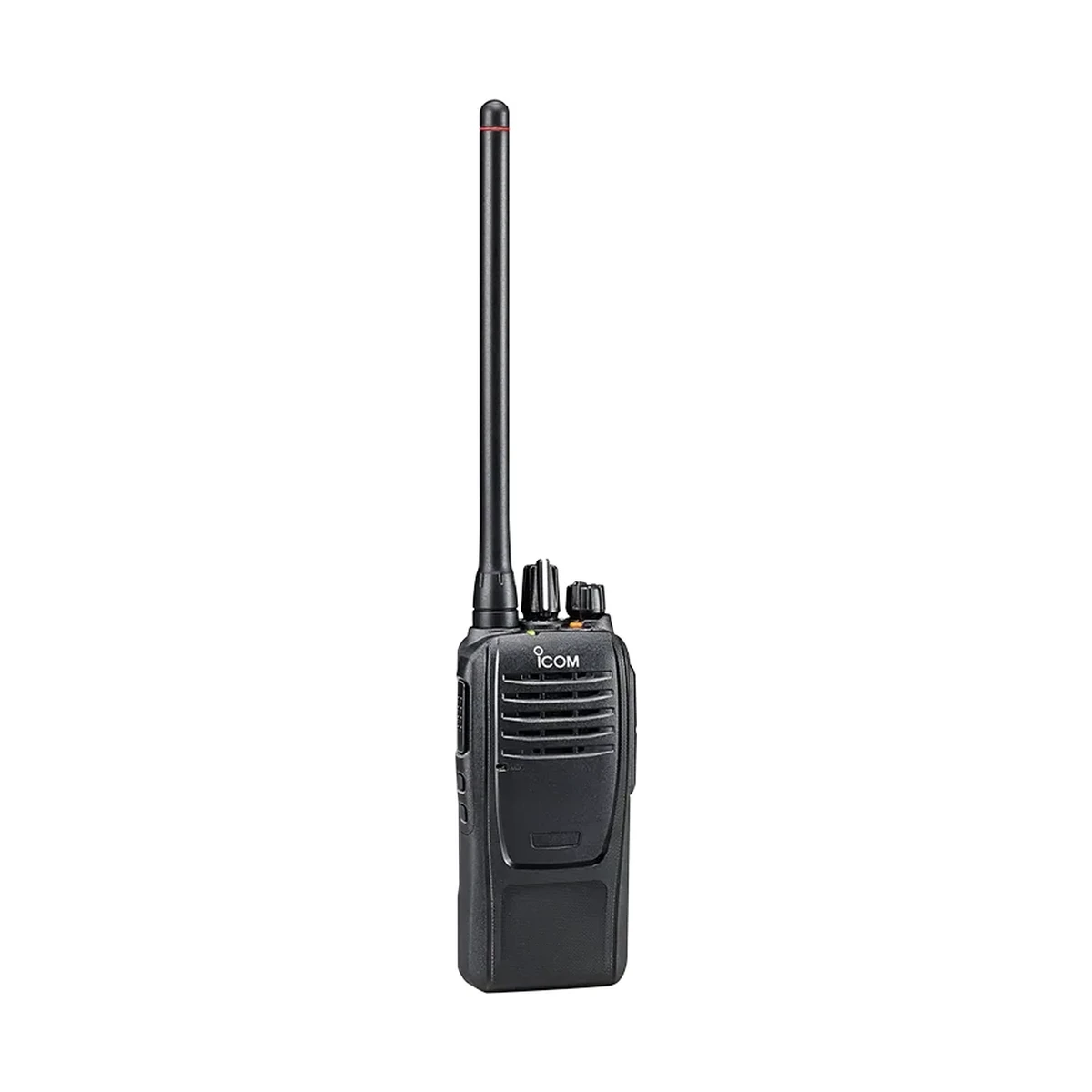

The LCD display versions support 128 channels across 8 zones, while the non-display versions support 16 channels.
