Icom

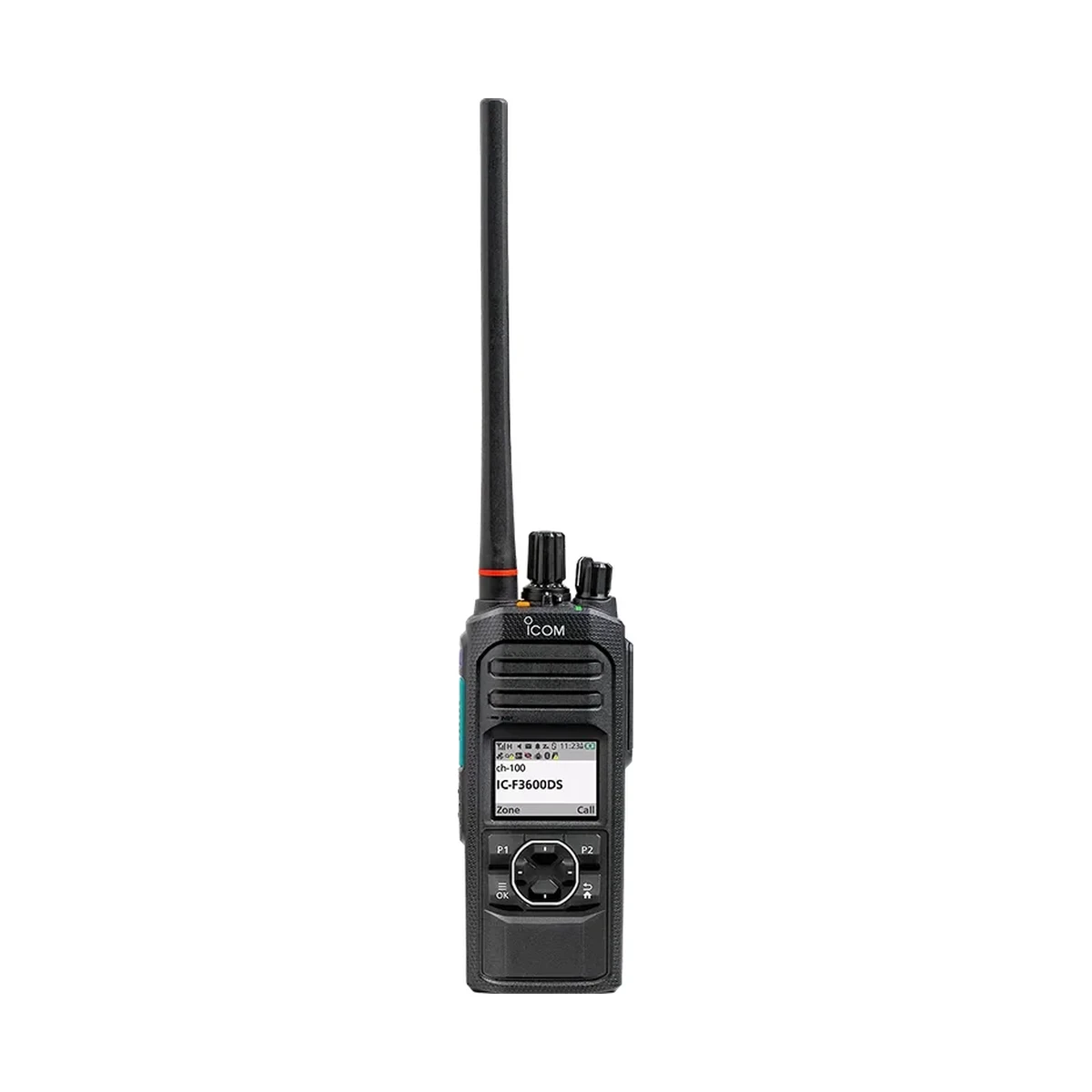

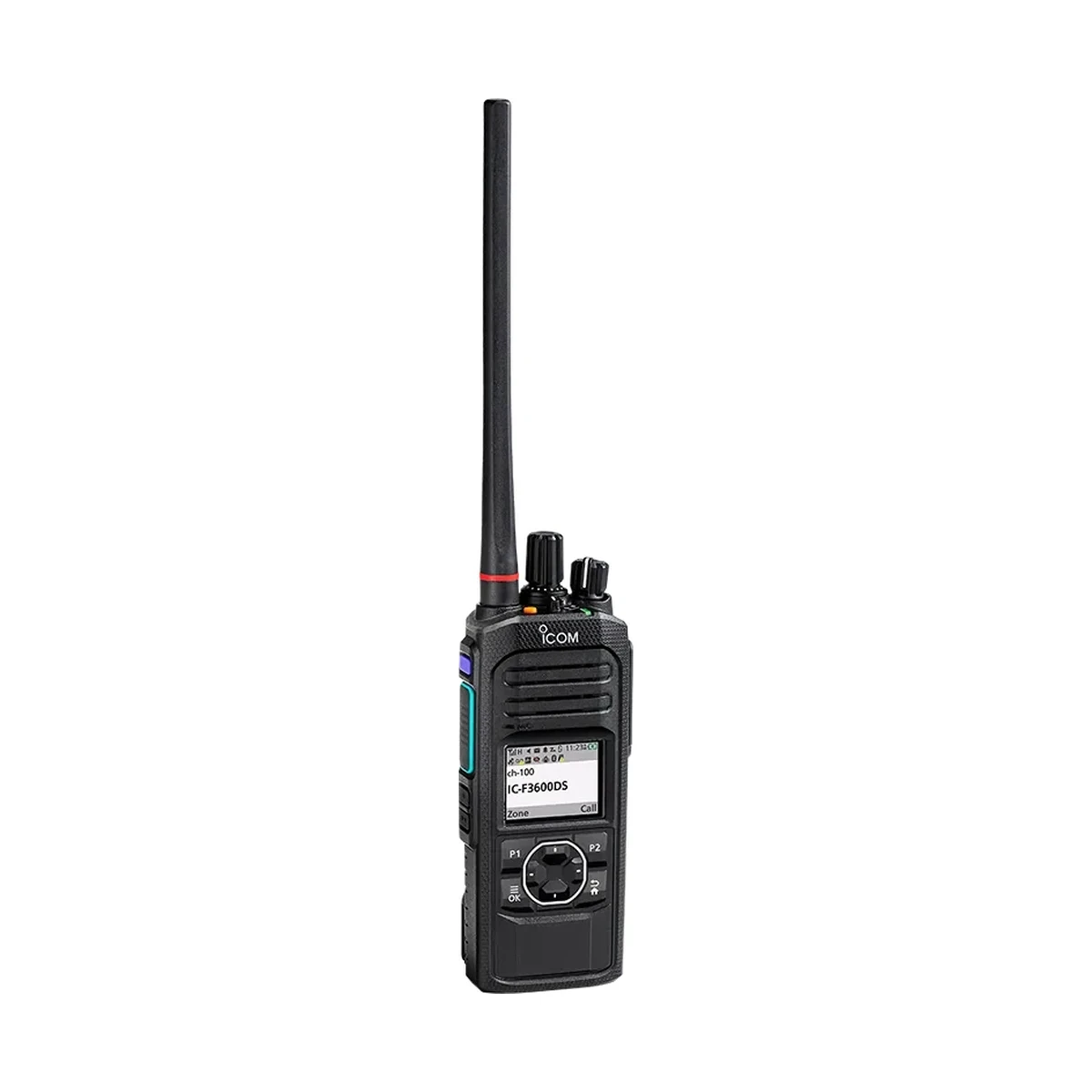

IC-F3600D / IC-F4600D — handheld radios from Icom. Current top-tier IDAS digital handheld. icomjapan.com
Technical
| Frequency coverage (IC-F3600DT/DS) | 136–174 MHz |
|---|---|
| Frequency coverage (IC-F4600DT/DS) | 400–520 MHz, 350–400 MHz |
| Number of channels | 1024 channels / 128 zones |
| Type of emission - Analog | 16K0F3E, 14K0F3E (EUR), 11K0F3E (USA), 8K50F3E (Except USA) |
| Type of emission - Digital | 8K30F1E/D (DN), 4K00F1E/D (DVN) |
| Power supply requirement | 7.5 V DC nominal |
| Current drain Tx (IC-F3600DT/DS) | 1.5 A (5 W), 1.9 A (7 W, 150–162 MHz) |
| Current drain Tx (IC-F4600DT/DS) | 1.7 A |
| Current drain Rx (Max. audio internal SP / Standby) | 620 mA / 160 mA |
| Antenna impedance | 50 Ω |
| Operating temperature range | –30 °C to +60 °C; –22 °F to +140 °F |
| Dimensions (W×H×D with BP-303N) | 55.4 × 138.0 × 38.1 mm, 2.2 × 5.4 × 1.5 in |
| Weight (main unit) | 219 g, 7.7 oz |
| Weight (with BP-303N, MB-133, FA-S81VS/US) | 350 g, 12.3 oz |
| Output power Hi/L2/L1 - USA IC-F3600DT/DS | 7 W, 2 W, 1 W (150–162 MHz); 5 W, 2 W, 1 W (136–149.999, 162.001–174 MHz) |
| Output power Hi/L2/L1 - USA IC-F4600DT/DS | 5 W, 2 W, 1 W |
| Output power Hi/L2/L1 - EUR/AUS | 5 W, 2 W, 1 W (both models) |
| Frequency stability | ±1.0 ppm |
| Maximum permissible deviation | ±5.0 kHz (W), ±4.0 kHz (M), ±2.5 kHz (N) |
| Audio harmonic distortion | 0.4% typ. (AF 1 kHz 40% deviation) |
| Sensitivity - Analog 12 dB SINAD USA (IC-F3600DT/DS and IC-F4600DT/DS) | –121 dBm typ. (W/N) |
| Audio output power - Internal SP | 1300 mW typical (at 5% distortion, 8 Ω load) |
| BP-303N Capacity | 3120 mAh typ., 3070 mAh min. |
| BP-316 Capacity | 4810 mAh typ., 4690 mAh min. |
| Ingress Protection - Dust & Water | IP68 (Dust-tight and waterproof protection) |
Overview
IC-F3600D / IC-F4600D — handheld radios from Icom. Current top-tier IDAS digital handheld. icomjapan.com
