Icom

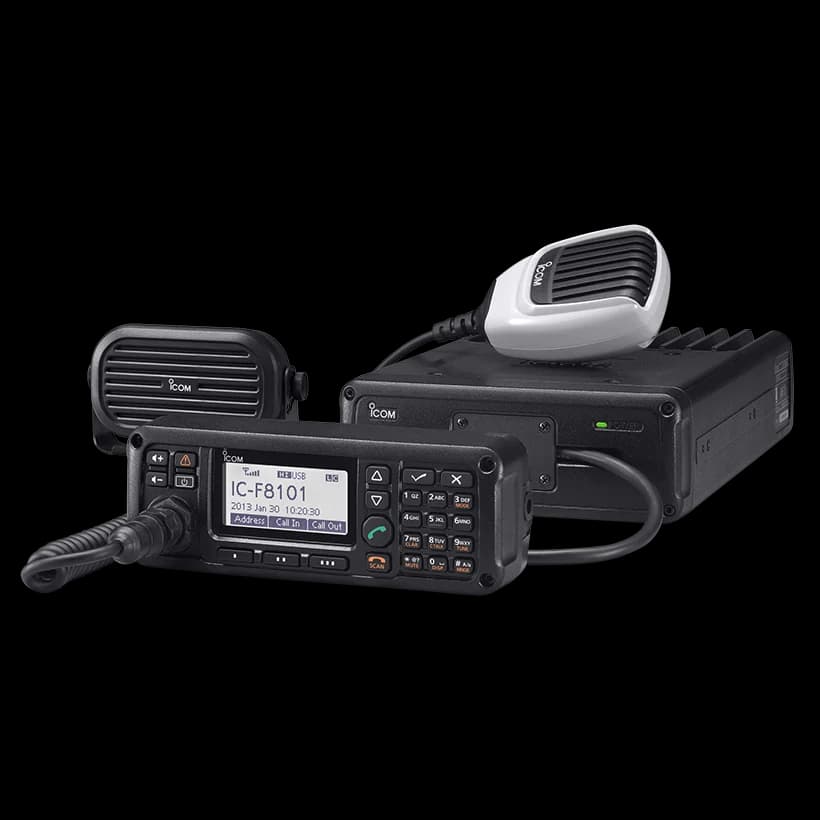

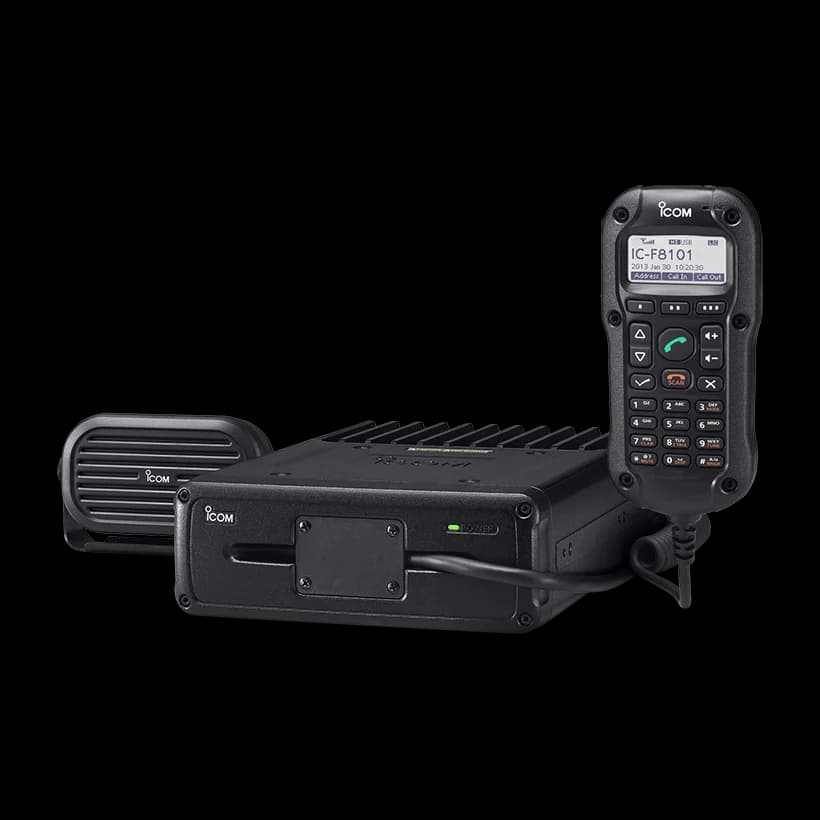

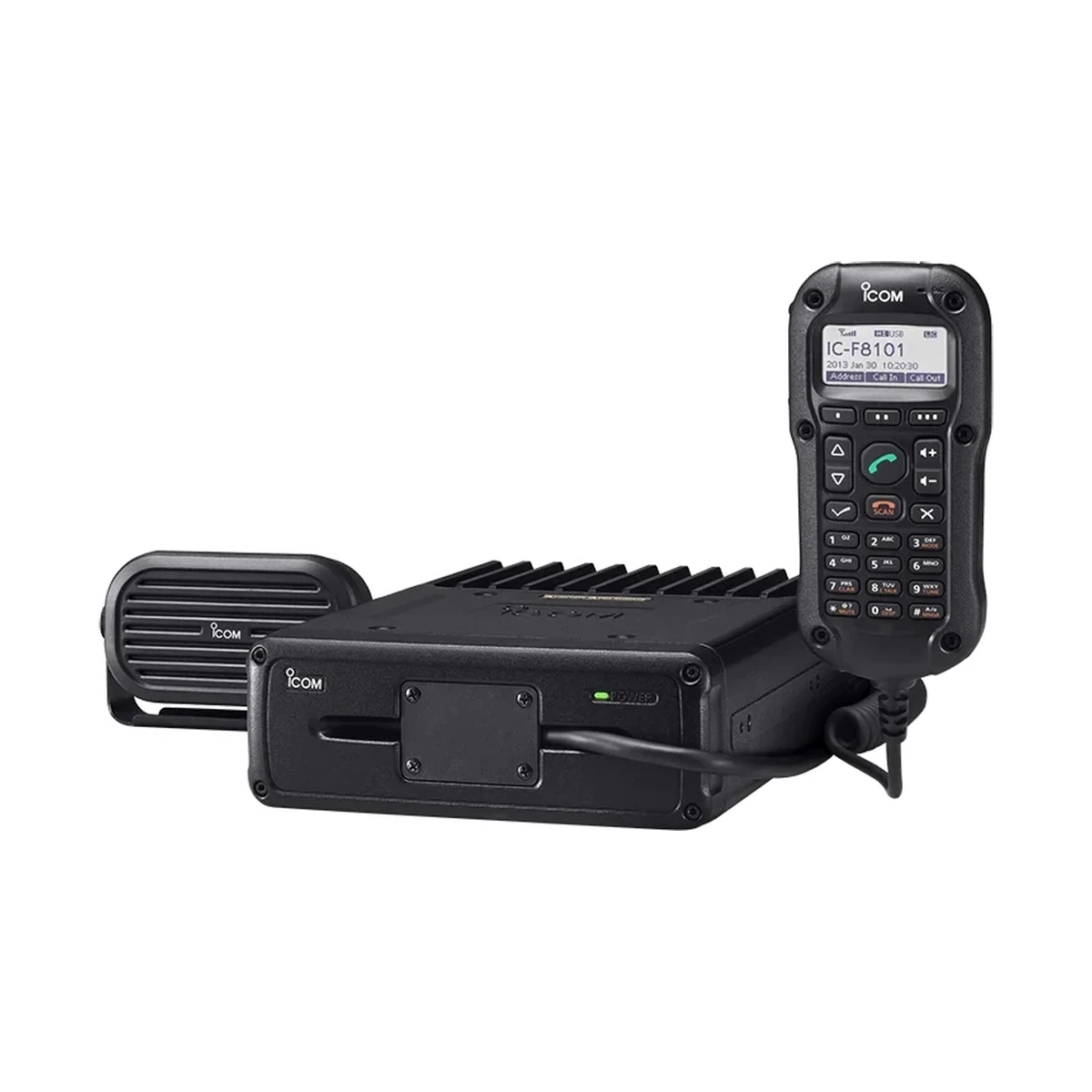

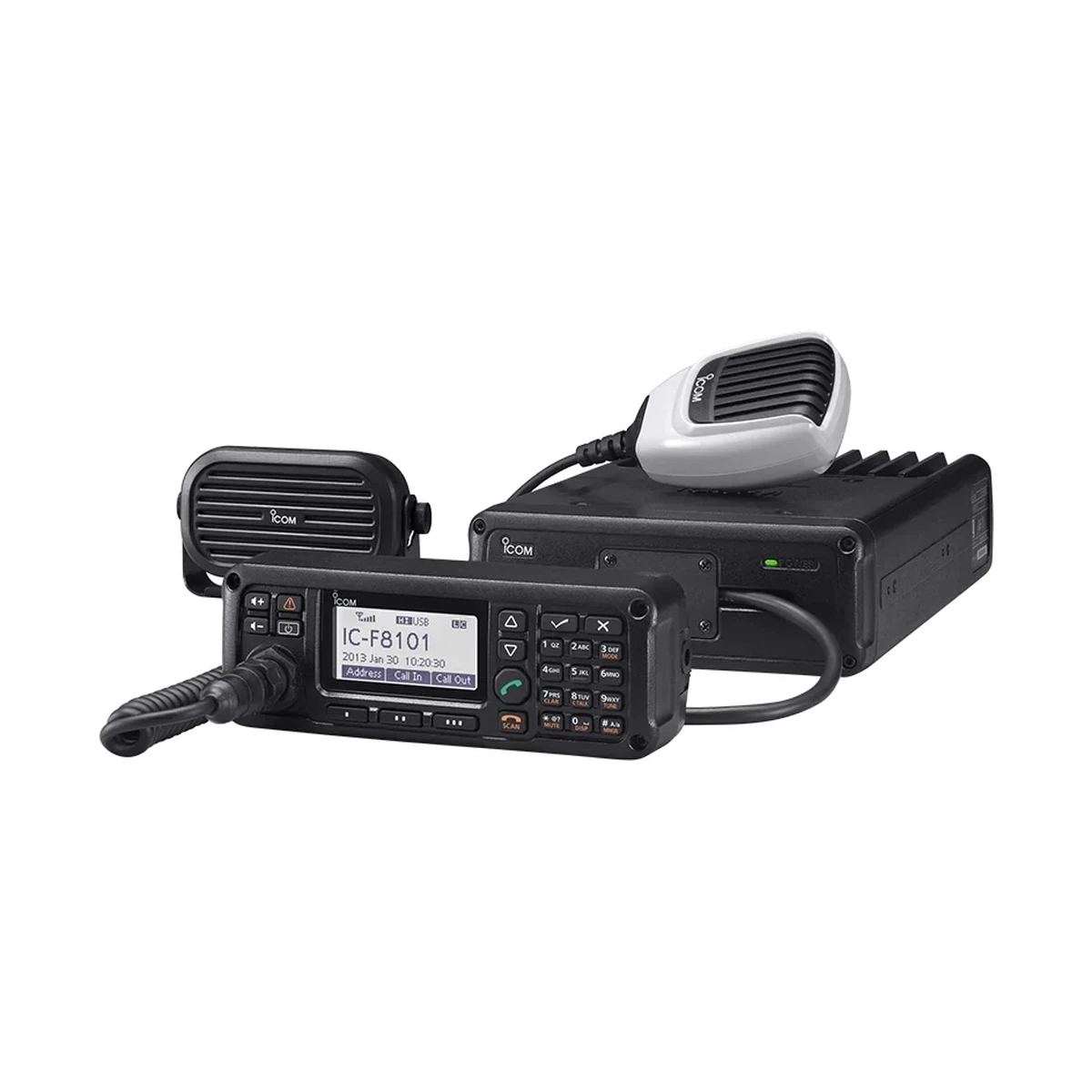

Icom IC-F8101 professional HF SSB transceiver with 500 channels and up to 125W PEP output for long-range fleet communication.
Technical
| Frequency coverage - Receive | 0.5–29.9999 MHz |
|---|---|
| Frequency coverage - Transmit | 1.6–29.9999 MHz |
| Number of channels | 500 channels |
| Type of emissions (Australia) | J3E, A3E (RX only) |
| Type of emissions (Export/USA) | J3E, A3E, A1A, F1B, J2B |
| Power supply requirements | 13.8 V DC Negative ground; 10.8–15.6 V (Australia); 11.73–15.87 V (Export/USA) |
| Current drain - Receive | Less than 3 A (Max. audio), 1.0 A (Stand-by) |
| Current drain - Transmit | Less than 28 A (Maximum output) |

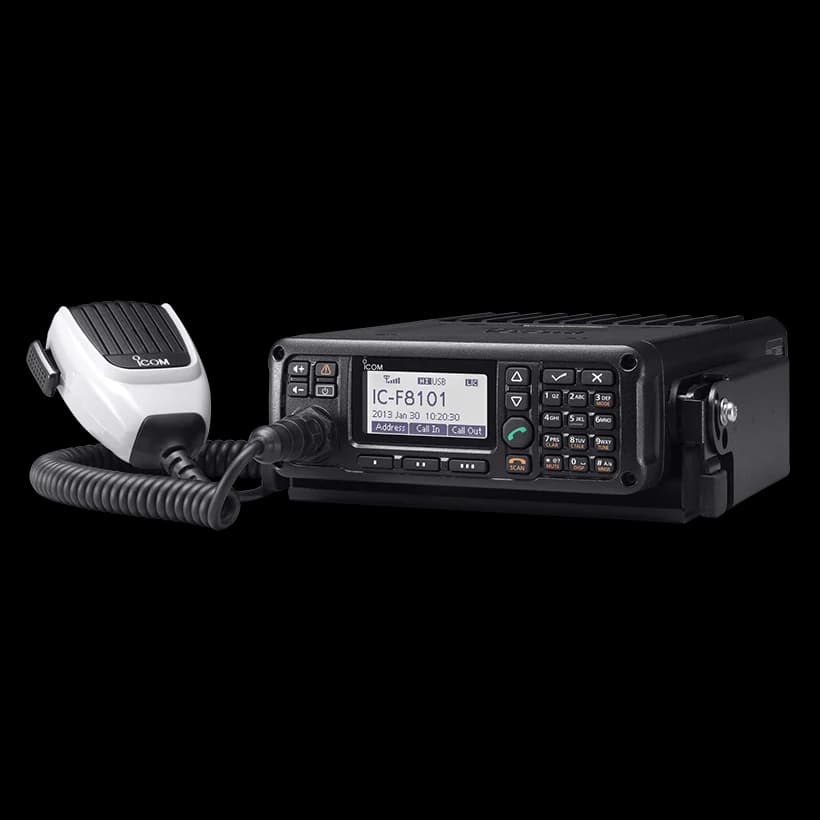

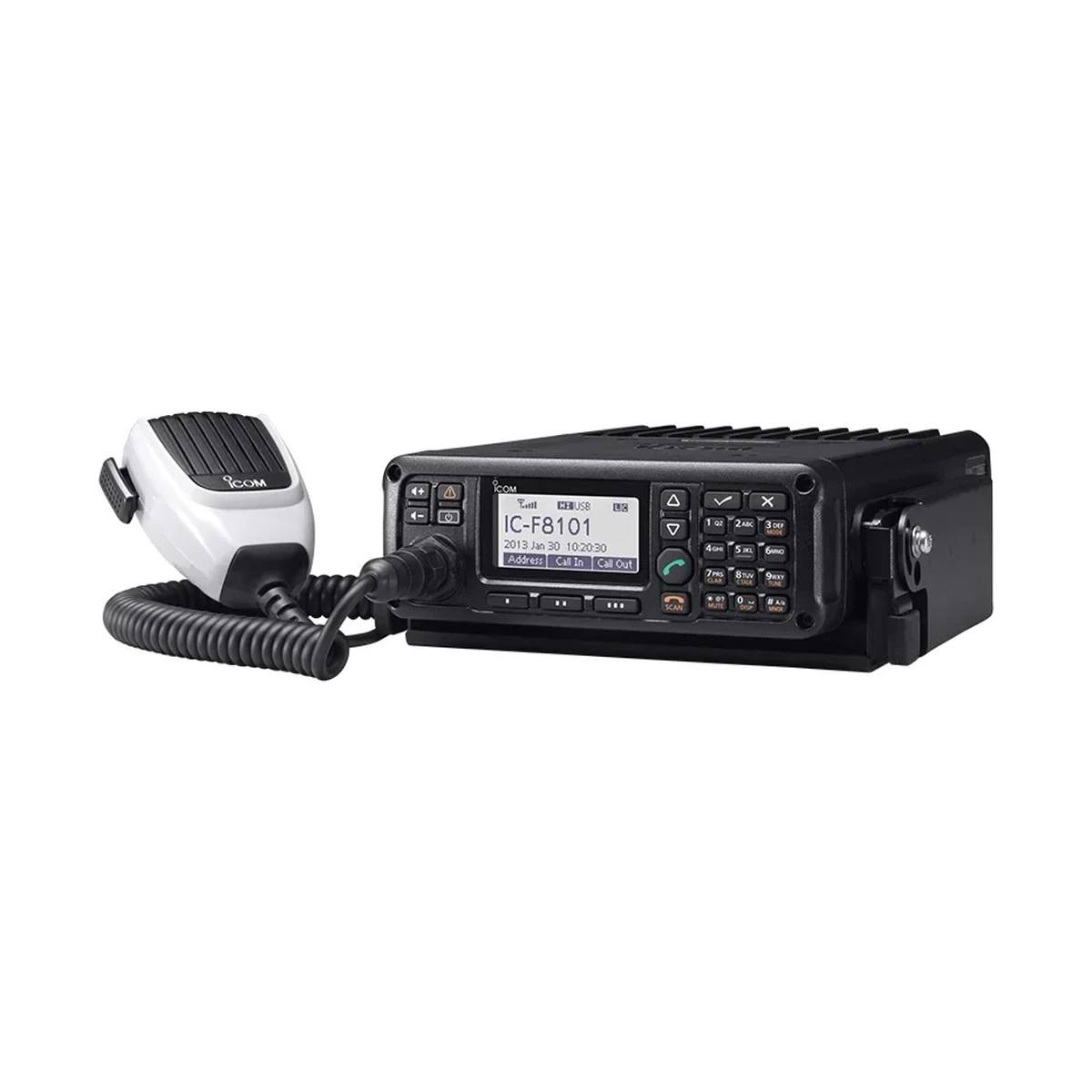

| Dimensions (W×H×D) | 174×62×259 mm; 6.85×2.44×10.2 in (Controller attached type) |
| Weight (approx.) | 3.9 kg; 8.6 lb (Controller attached type) |
| Output power (Australia) | J3E: 100, 50, 10 W PEP (typical) |
| Output power (Export/USA) | J3E/A1A: 125, 50, 10 W PEP (typical); A3E: 30, 12.5, 3 W (typical); F1B/J2B: 75, 50, 10 W PEP (typical) |
| Spurious emissions | 64 dB below PEP typical (EXP/Australia); 64 dB below PEP (USA) |
| Sensitivity at 10dB S/N - J3E (Pre-amp ON) | 0.5–1.5999 MHz: 14 dBμV; 1.6–29.9999 MHz: -14 dBμV |
| Sensitivity at 10dB S/N - A3E | 0.5–1.5999 MHz: 22 dBμV; 1.6–29.9999 MHz: 6 dBμV |
| Squelch sensitivity - J3E (at 13.5 MHz) | Threshold: Less than +20 dBμV; Tight: Less than +90 dBμV |
| Squelch sensitivity - A3E (at 1.000 MHz) | Threshold: Less than +30 dBμV; Tight: Less than +110 dBμV |
| Spurious responses | More than 70 dB |
| Audio output power | 4.0 W at 10% distortion with a 4 Ω load |
Overview
The IC-F8101 is a professional HF SSB transceiver covering 0.5 to 29.9999MHz on receive and 1.6 to 29.9999MHz on transmit, with 500 programmable channels for fleet and long-range communication use. It supports J3E, A3E, A1A, F1B and J2B emission modes and delivers up to 125W PEP output (export/USA version) or 100W (Australia version) across selectable power levels, drawing up to 28A on transmit from a 13.8V DC negative-ground supply. In the controller-attached configuration it measures 174 x 62 x 259mm and weighs 3.9kg.
Questions
The IC-F8101 receives from 0.5-29.9999 MHz and transmits from 1.6-29.9999 MHz across 500 channels.
Output power depends on region and mode: for Export/USA, J3E/A1A delivers 125, 50 or 10 W PEP, A3E delivers 30, 12.5 or 3 W, and F1B/J2B delivers 75, 50 or 10 W PEP. For Australia, J3E delivers 100, 50 or 10 W PEP.
The IC-F8101 (controller attached type) weighs approximately 3.9 kg and measures 174 x 62 x 259 mm.
The IC-F8101 runs on 13.8V DC negative ground supply, with an operating range of 10.8-15.6V for Australia or 11.73-15.87V for Export/USA versions.
