Icom
Digital mobile radios for VHF 136-174 MHz and UHF 400-520 MHz, delivering up to 50 W and 45 W output respectively with 128 channels.
Technical
| Frequency coverage (IC-F5330D) | 136–174 MHz |
|---|---|
| Frequency coverage (IC-F6330D) | 400–520 MHz / 400–512 MHz |
| Number of channels | 128 channels/8 zones |
| Power supply requirement (USA/EXP 50W/45W) | 13.6 V DC nominal |
| Current drain Tx (High) | 14 A Max. (50W/45W) or 7 A Max. (25W) |
| Current drain Rx (Max./Standby) | 2.5 A Max./500 mA Max. |
| Antenna impedance (USA/EXP 50W/45W) | 50 Ω (SO-239) |
| Operating temperature range | –30 °C to +60 °C |
| Dimensions (Main unit) | 150 × 45 × 161.8 mm |
| Dimensions (Mic) | 60.8 × 134.8 × 35.5 mm |
| Weight (Main unit) | 1.2 kg |
| Weight (Mic) | 250 g |
| Output power (USA/EXP 50W/45W, IC-F5330D, Hi/L2/L1) | 50 W, 25 W, 5 W |
| Output power (USA/EXP 50W/45W, IC-F6330D, Hi/L2/L1) | 45 W, 25 W, 4.5 W |
| Frequency stability | ±1.0ppm |
| Maximum frequency deviation | ± 5.0 kHz (W), ±4.0 kHz (M), ±2.5 kHz (N) |
| Spurious emissions (USA/EXP 50W/45W) | 80 dB typ. |
| Audio harmonic distortion | 0.6% typ. |
| Sensitivity Analog 12dB SINAD (IC-F5330D) | 0.25/0.22 μV (–119/–120 dBm) typ. (W/N) |
| Sensitivity Analog 12dB SINAD (IC-F6330D) | 0.22 μV (–120 dBm) typ. (W/N) |
| AF output power (Internal SP/Commandmic) | 1.7 W typ. |
| AF output power (External SP) | 4.2 W typ. |
| Ingress Protection (Commandmic) | IPX4 (Water resistance) |
Overview

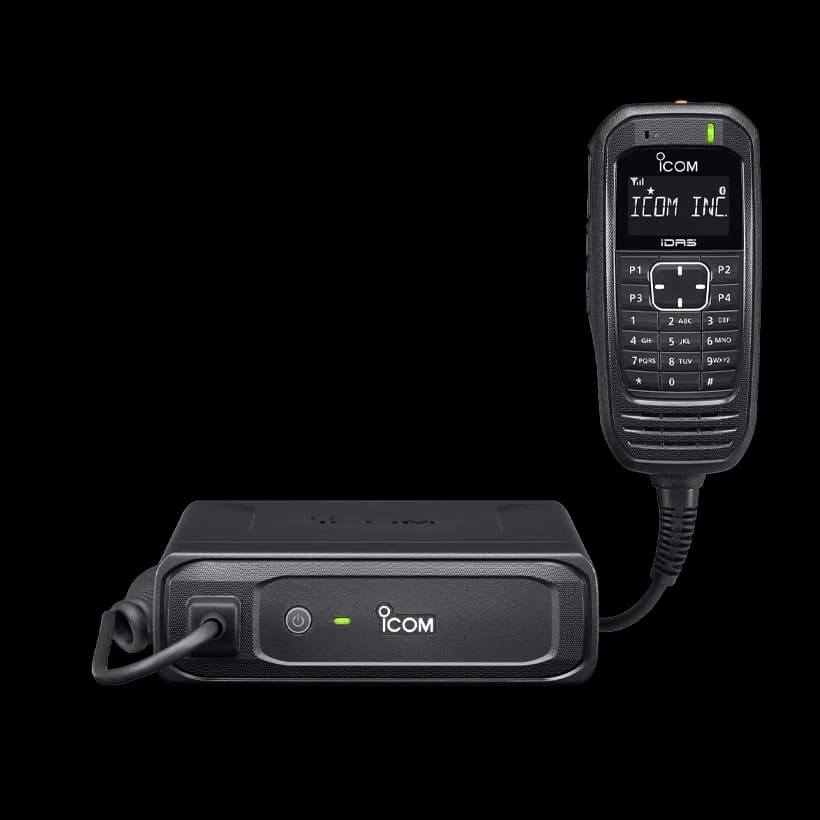

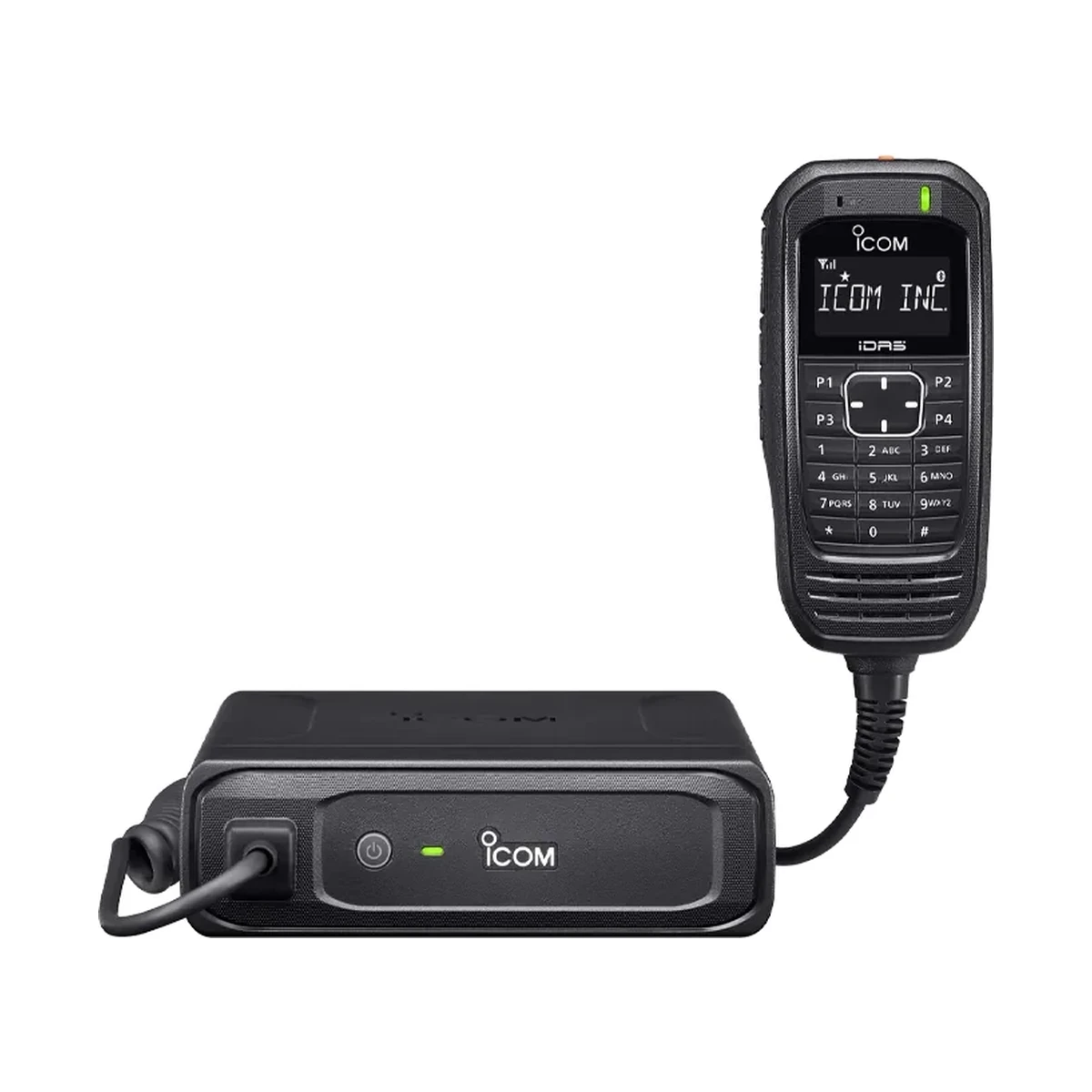

The IC-F5330D and IC-F6330D are digital mobile radios covering VHF 136-174 MHz and UHF 400-520 MHz respectively, with 128 channels across 8 zones. The VHF F5330D outputs up to 50 W and the UHF F6330D up to 45 W, drawing as much as 14 A on high-power transmit from a 13.6 V DC supply, with a compact main unit measuring 150 x 45 x 161.8 mm and weighing 1.2 kg. Both models are rated from -30°C to +60°C, deliver up to 4.2 W of audio through an external speaker, and pair with an IPX4 water-resistant Commandmic.
Questions
The IC-F5330D delivers 50 W, 25 W or 5 W (Hi/L2/L1), and the IC-F6330D delivers 45 W, 25 W or 4.5 W (Hi/L2/L1) in the USA/EXP versions.
The IC-F5330D covers 136-174 MHz, while the IC-F6330D covers 400-520 MHz / 400-512 MHz.
Both models support 128 channels across 8 zones.
Yes, the Commandmic carries an IPX4 water-resistance rating.
