Icom

IC-V86

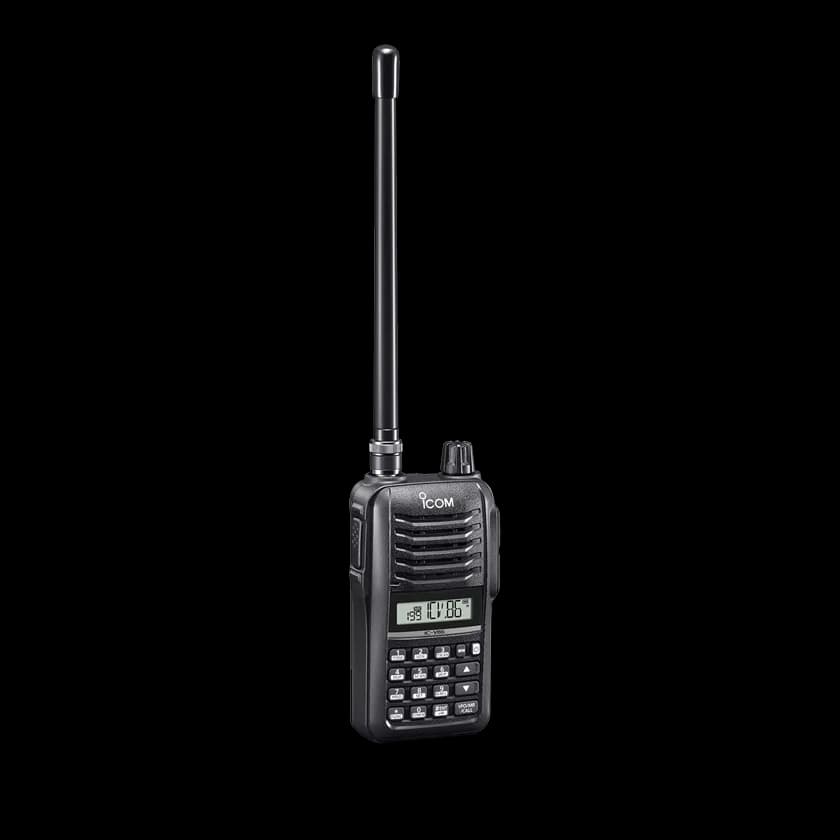

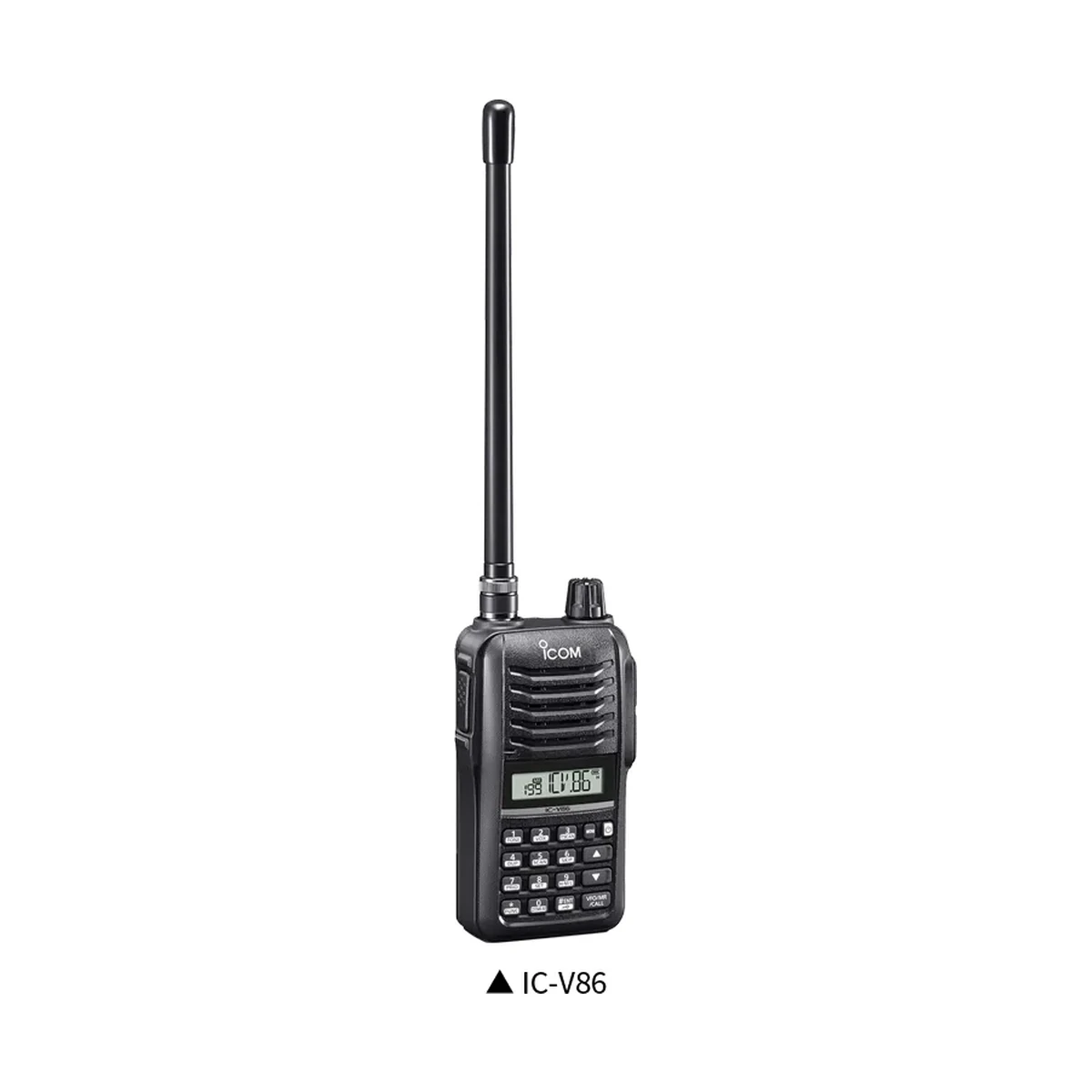

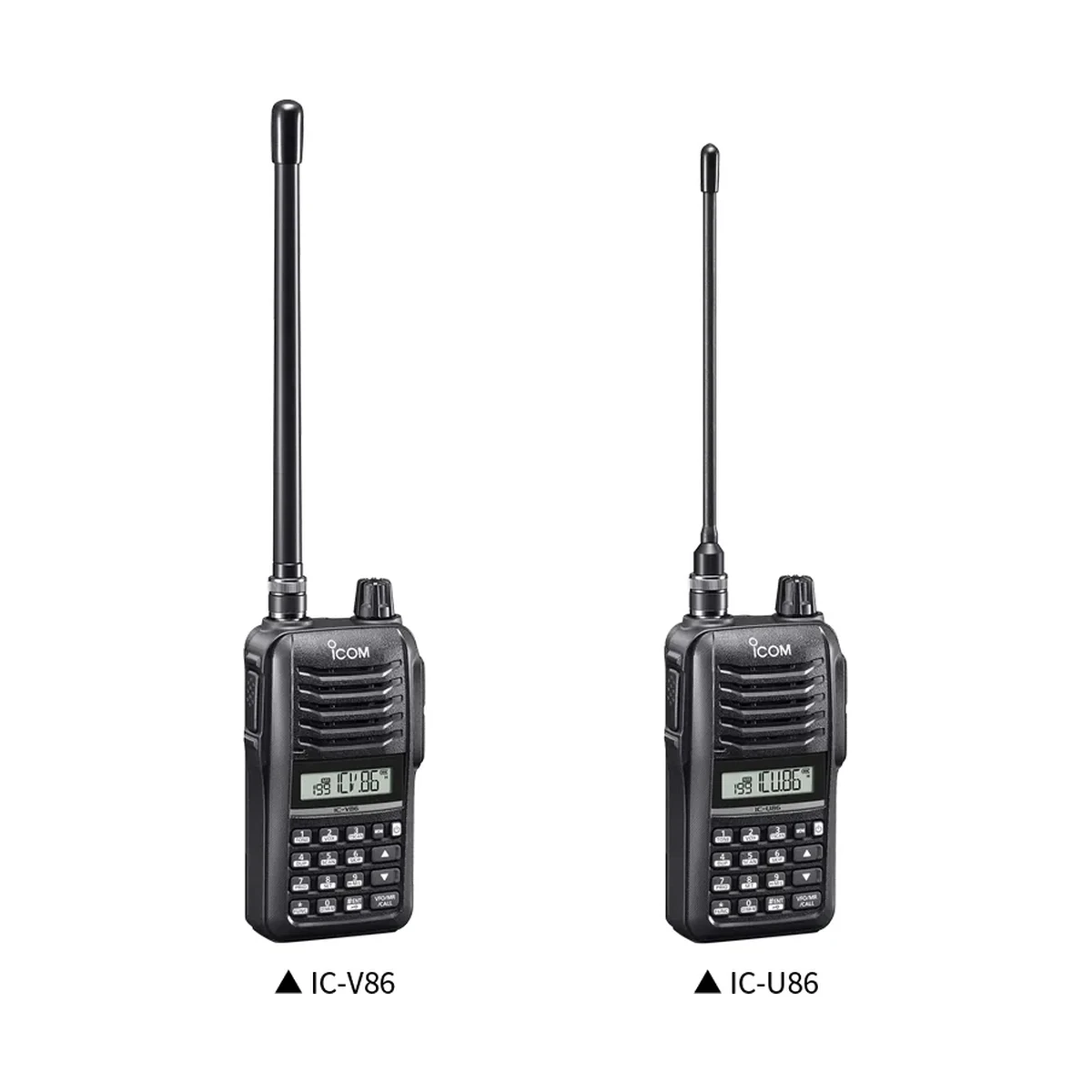

Icom IC-V86 2m VHF handheld transceiver with 7.0W maximum output, 207 memory channels, and IP54 dust/water resistance.

Brand: Icom
Category: Land Mobile
Manufacturer: Icom website ↗
Availability: Enquire for lead time

Technical

Specifications

Frequency Range - IC-V86 (TX/RX)	TX 144–148 MHz, RX 136–174 MHz
Type of Emissions	F2D, F3E (FM, FM-N)
Number of Channels	207 channels (200 memory channels, 1 call channel and 6 scan edges)
Antenna Impedance	50Ω
Power Supply Requirement	7.5V DC
Operating Temperature Range	–20 ˚C to +60 ˚C, –4 °F to +140 °F
Frequency Stability	±2.5ppm (–20 ˚C to +60 ˚C, –4 °F to +140 °F)
Dimensions (with BP-298)	58.6 × 112 × 30.5 mm, 2.3 × 4.4 × 1.2 in
Weight - IC-V86 (with BP-298, FA-B57V)	300 g, 10.6 oz
Output Power (EX Hi/Hi/Mid/Low) - IC-V86	7.0/5.5/2.5/0.5 W
Maximum Frequency Deviation (Wide/Narrow)	±5.0 kHz/±2.5 kHz
Spurious Emissions	Less than –60 dB
External Microphone Connector	3-conductor 2.5 (d) mm (1/10")/2.2 kΩ
Current Drain (TX) - IC-V86	1.6/1.4/1.0/0.5 A typical
Sensitivity - IC-V86	–124 dBm typical
Squelch Sensitivity - IC-V86	–126 dBm typical
Selectivity (Wide/Narrow) - IC-V86	75 dB typical / 70 dB typical
Intermodulation	65 dB typical
Audio Output Power (with 8 Ω load, internal speaker)	1500 mW typical
External Speaker Connector	3-conductor 3.5(d)mm (1/8″)/8Ω
Current Drain (RX)	450 mA typ. (INT SP), 190 mA typ. (EXT SP, Single end), 450 mA typ. (EXT SP, BTL)
IP Rating	IP54 (Dust-protection, water resistance)

Overview

About this product

The IC-V86 is a 2m VHF handheld transceiver covering 144 to 148MHz on transmit and 136 to 174MHz on receive, with 207 memory channels (200 regular, 1 call channel and 6 scan edges) and four selectable power levels topping out at 7.0W. It draws up to 1.6A on maximum transmit power from a 7.5V DC battery, delivers 1500mW of audio through its internal speaker, and carries an IP54 rating for dust and water resistance. Compact at 300g and 58.6 x 112 x 30.5mm, it operates across a -20C to +60C temperature range with ±2.5ppm frequency stability.

Questions

Frequently asked questions

Is the Icom IC-V86 waterproof or dustproof?

The IC-V86 carries an IP54 rating, meaning it is protected against dust ingress and against water splashed from any direction, but it is not rated for submersion.

What output power does the IC-V86 transmit at?

The IC-V86 offers four selectable power levels: 7.0 W (EX Hi), 5.5 W (Hi), 2.5 W (Mid) and 0.5 W (Low).

How many channels can the IC-V86 store?

The IC-V86 supports 207 channels in total: 200 memory channels, 1 call channel and 6 scan edges.

What frequency range does the IC-V86 cover?

The IC-V86 transmits on 144-148 MHz and receives across 136-174 MHz, with FM and narrow-FM emission modes.
