Digital Yacht

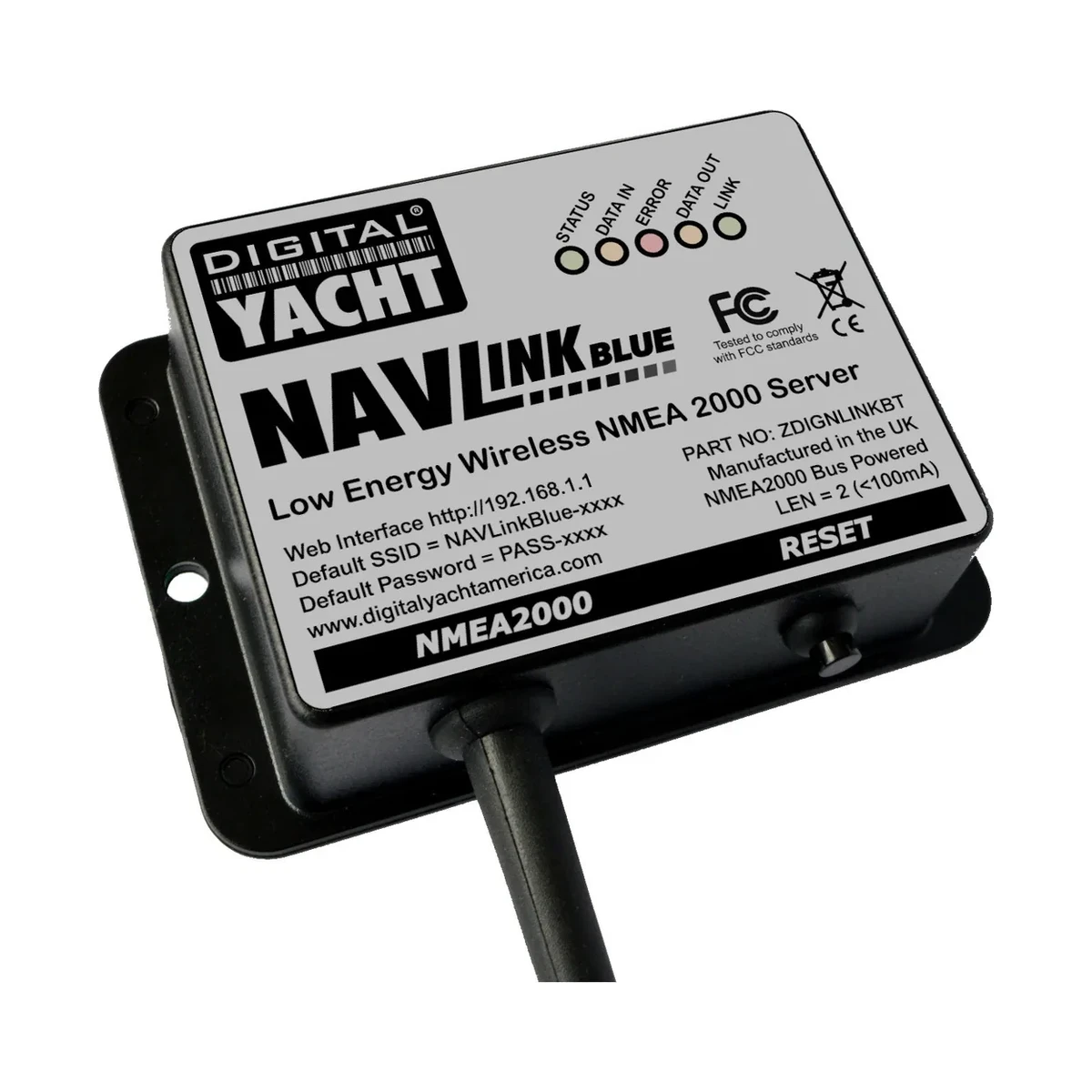

The Digital Yacht NAVLink Blue is a Bluetooth-to-NMEA 2000 interface that gathers temperature, humidity, and pressure data from up to 16 wireless Ruuvi sensors.
Technical
| System | Ruuvi wireless sensor plus NAVLink Blue NMEA 2000 Bluetooth interface |
|---|---|
| Sensor capacity | Supports up to 16 wireless Ruuvi sensors for multiple locations |
| Sensor broadcast rate | 0.4 Hz |
| Data logging | 5-minute intervals, 10 days internal storage |
| Temperature range (Standard) | -20C to +70C |
| Temperature range (Pro) | -40C to +85C |
| Humidity accuracy | +/-3% RH |
| Humidity range | 0-95% RH |
| Humidity display | RH-%, g/m3, dew point |
| Air pressure range | 500-1155 hPa |
| Air pressure accuracy | 1 hPa |
| Pressure display options | mmHG, millibar, inHG, hPa, Pa |
| Ruuvi Tag Standard | 52mm diameter, 25g |
| Ruuvi Tag Pro | 78mm max, 38g |
| Waterproofing | IPX7 rated, both versions |
| Power (Ruuvi Tag) | Internal 1000mAh coin cell (CR2477), approx 1-2 years battery life |
| Power (NAVLink Blue) | Self-powered from NMEA 2000 bus |
| Bluetooth range | 10-15 meters, environment dependent |
Overview
NAVLink Blue is a Bluetooth interface from Digital Yacht that brings data from wireless Ruuvi sensors onto the NMEA 2000 bus, supporting up to 16 sensors placed around the boat and broadcasting updates at 0.4Hz with 5-minute logging intervals stored for 10 days internally. The Ruuvi tags report temperature (Standard version -20C to +70C, Pro version -40C to +85C), humidity to +/-3% RH displayed as RH-%, g/m3 or dew point, and air pressure across a 500-1155 hPa range with 1 hPa accuracy shown in mmHG, millibar, inHG, hPa or Pa. Both tag versions are IPX7 rated and run on a coin cell battery lasting one to two years, communicating over Bluetooth at a typical range of 10-15 metres, while NAVLink Blue itself is self-powered from the NMEA 2000 bus.
Questions
The system supports up to 16 wireless Ruuvi sensors for multiple locations around the boat.
They measure temperature, humidity (with RH-%, g/m3 and dew point display), and air pressure (in mmHG, millibar, inHG, hPa or Pa), broadcasting updates at 0.4 Hz.
It runs on an internal 1000mAh coin cell (CR2477) for approximately 1-2 years, while the NAVLink Blue interface itself is self-powered from the NMEA 2000 bus.
Yes, both the Standard and Pro versions are IPX7 rated.
