AMEC

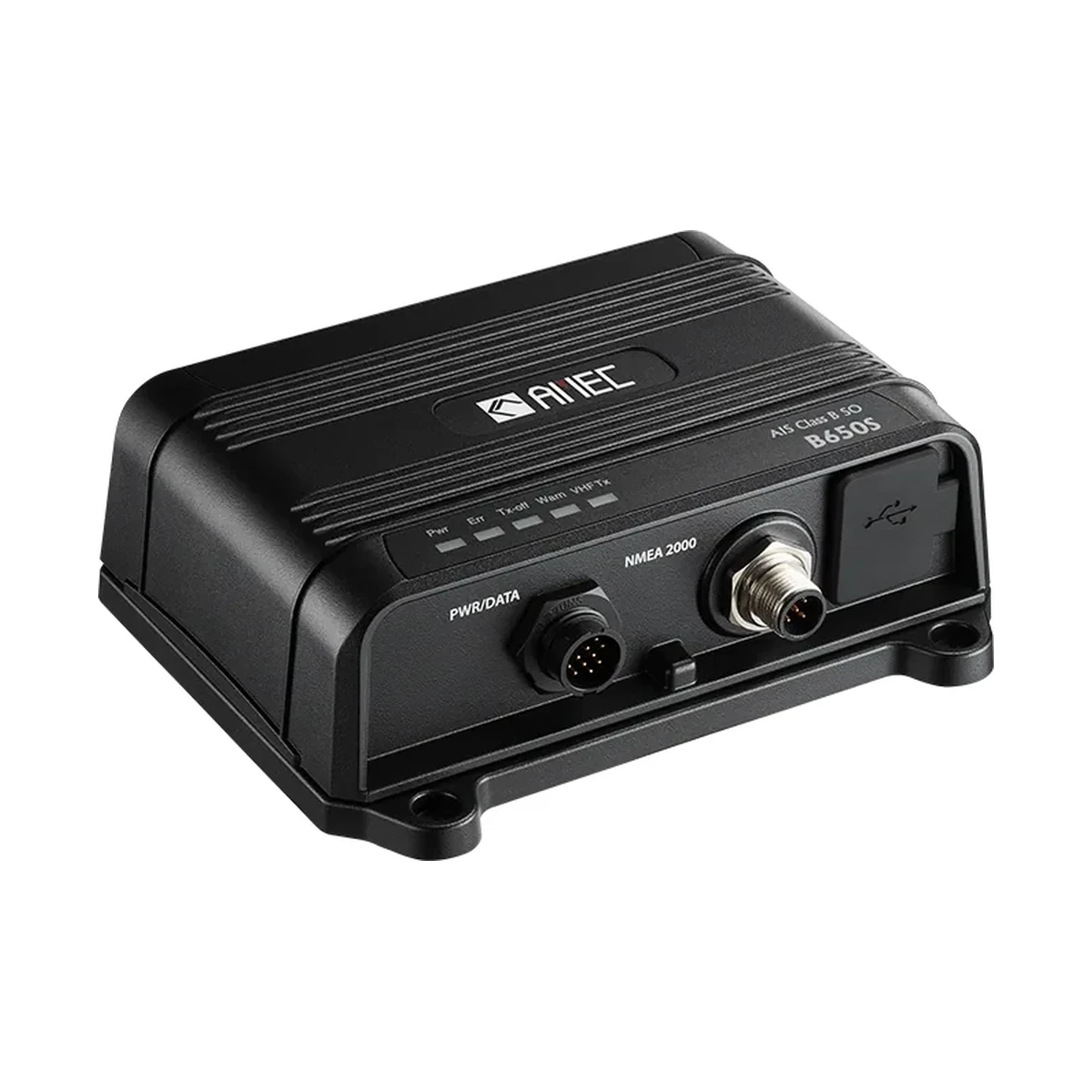

AMEC WideLink B650S
The AMEC WideLink B650S is a Class B SO AIS transponder with an integrated VHF splitter, SOTDMA access, and selectable 5W or 1W transmit power.
- Brand
- AMEC
- Category
- Marine
- Availability
- Enquire for lead time
Technical
Specifications
| AIS Performance Standard | IEC 62287-2 Ed. 2.0 (2017-02) |
|---|---|
| GNSS Performance Standard | IEC 61108-1 Ed. 2.0 (2003-07) |
| Serial Data Interface Standard | IEC 61162-1 Ed. 6.0 (2024-04); IEC 61162-2 Ed. 2.0 (2024-04) |
| NMEA 2000 Standard | NMEA 2000 Version 3.0 (2022-03) |
| Environmental Standard | IEC 60945 Ed. 4.0 (2002-08) incl. Cor. 1 (2008-04) |
| Product Safety Standard | IEC 62368-1 Ed. 4.0 (2023-05); EN 62311 Ed. 2.0 (2020-01) |
| GNSS Receiving Channels | 72 channels |
| Time to First Fix (cold start) | 30 s |
| GNSS Horizontal Position Accuracy | 2.5 m |
| GNSS Support | GPS, Galileo, BeiDou, GLONASS |
| VDL Access Scheme | SOTDMA |
| VHF Frequency Range | 156.025 MHz ~ 162.025 MHz |
| VHF Channel Bandwidth | 25 KHz |
| Receivers / Transmitters | 2 x receivers, 1 x transmitter |
| AIS Transmit Power | 5 Watt (37 dBm ± 1.5 dB); 1 Watt (30 dBm ± 1.5 dB) |
| AIS Receive Sensitivity | < -111 dBm @ 20% PER |
| DSC Modulation | 1,300 Hz / 2,100 Hz FSK |
| DSC Data Rate | 1,200 bps ± 30 ppm |
| DSC Spurious Response Rejection | ≧ 70 dB for signal @ -104 dBm; BER ≦ 1% |
| DSC Blocking | ≧ 84 dB for signal @ -104 dBm; BER ≦ 1% |
| Indicators | Power, Error, Tx-off, Warn, VHF Tx |
| Supply Voltage | 12 V / 24 V DC |
| Supply Voltage Range | 9.6 V ~ 31.2 V DC |
| Average Current (at 12 V) | 120 mA |
| Peak Current (at 12 V) | 1.7 A |
| Galvanic Isolation | NMEA 0183 inputs only; NMEA 2000 |
| VHF Antenna Connector | SO-239 |
| VHF Radio Connector | SO-239 |
| GNSS Connector | TNC |
| Power & Data Connections | 12 way circular multipole |
| NMEA 2000 Connector | 5 way Micro-C connector |
| USB Connector | USB type-C connector |
| NMEA 0183 Interface | 2 x bi-directional ports |
| NMEA 2000 Interface | NMEA 2000 Version 3.0, LEN=1 |
| USB Interface | PC virtual com port for NMEA 0183 data |
| Size (H x W x D) | 151.22 x 128.57 x 49.87 mm |
| Weight | 400 g |
| Operating Temperature | -25 °C ~ +55 °C |
| Waterproof and Dust Resistant | IP68 |
Overview
About this product
The AMEC WideLink B650S builds on the WideLink B650 by adding an integrated VHF splitter with its own VHF radio connector, allowing it to share a single antenna with an existing VHF radio. It retains the same SOTDMA channel access, selectable 5 Watt (37 dBm) or 1 Watt (30 dBm) transmit power, 72-channel multi-constellation GNSS receiver with 2.5m accuracy, and data outputs across two NMEA 0183 ports, NMEA 2000 (LEN=1) and USB-C. The transponder is IP68 rated, measures 151 x 129 x 50 mm at 400g, operates from -25C to +55C, and meets IEC 62287-2, IEC 61108-1 and IEC 60945 standards.
Questions
Frequently asked questions
How is the WideLink B650S different from the B650?
The B650S adds an integrated splitter with a dedicated VHF Radio Connector (SO-239) so it can share an antenna with a VHF radio, plus an additional VHF Tx indicator alongside Power, Error, Tx-off and Warn.
What access scheme does the B650S use?
SOTDMA (Self-Organizing TDMA), as a Class B SO transponder per IEC 62287-2 Ed. 2.0:2017.
What is the transmit power of the B650S?
5 Watt (37 dBm ± 1.5 dB) or 1 Watt (30 dBm ± 1.5 dB).
Is the B650S waterproof?
Yes, it is rated IP68 for waterproof and dust resistance.
