Haiyang HD-580C

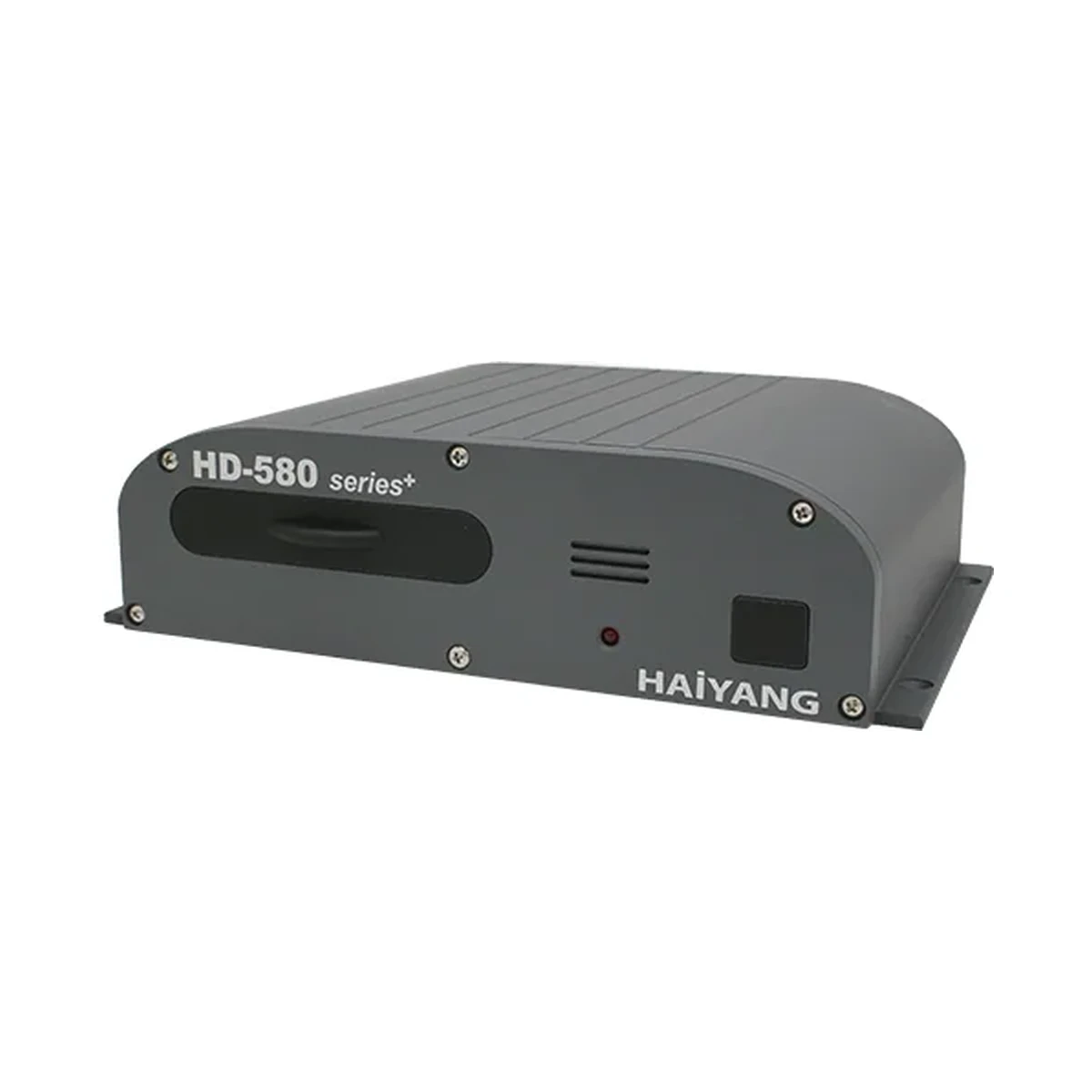

The Haiyang HD-580C is an XGA-resolution (1024x768) chartplotter controller with multi-constellation GNSS positioning and IMO Resolution MSC.112(73) compliance.
- Brand
- Haiyang
- Category
- Marine
- Availability
- Enquire for lead time
Technical
Specifications
| Product Name | XGA GPS Chartplotter Controller |
|---|---|
| Resolution | 1024 x 768 pixels |
| Power Supply | DC 12V ~ 36V (±10%) |
| Operation Temperature (Unit) | -15°C ~ +50°C |
| Operation Temperature (Antenna Unit) | -25°C ~ +70°C |
| Performance Standard | IMO Resolution MSC.112(73) |
| GNSS Receiver Capabilities | GPS L1 C/A code, GLONASS L10F, QZSS L1 C/A code, Galileo E1B/E1C/L1 |
| Number of Channel | 52 channel over |
| Horizontal Positioning Accuracy (Autonomous) | 2.5m (CEP 50%) |
| Sensitivity | Acquisition -148 dBm, Tracking -165 dBm, Reacquisition -162 dBm |
| Nav Update | 1Hz |
| Support | DGPS, SBAS (EGNOS, WAAS, MASA, GAGAN, GLONASS) |
| Display Method | Mercator projection |
| Display Mode | True motion/N/S/E/W up/Course up/Head up |
| Latitude Limits | Between 85°N to 85°S |
| Map Scale | 0.05NM to 1,500NM |
| Map Datum | WGS-84 |
| Waypoint | 100,000 points (16 colors and 16 icons selectable per point) |
| Track Point | 50,000 points (2 types) |
| Route | Max capacity 100 Routes (20 WPTs per Route, each with name tags of 8 alphanumeric characters) |
| Draw Point | 1,000 points |
| Area Name | 1,000 points |
| Chart Data | HY-MAP (Built-in or External)/C-MAP/Navionics |
| Output Data | NMEA-0183 |
| Input Data | NMEA-0183 |
| Alarm | Arrival, Anchor, XTE, Interval timer, Userline |
Overview
About this product
The Haiyang HD-580C is an XGA GPS chartplotter controller with a 1024 x 768 pixel display and a 52-plus channel GNSS receiver covering GPS, GLONASS, QZSS, and Galileo signals, supported by DGPS and SBAS augmentation. It manages up to 100,000 waypoints, 50,000 track points, and 100 routes, and reads HY-MAP, C-MAP, and Navionics chart data over a Mercator projection display. The unit meets IMO Resolution MSC.112(73), runs on a DC 12V to 36V supply, and its antenna unit is rated from -25°C to +70°C.
Questions
Frequently asked questions
What resolution does the Haiyang HD-580C display?
The HD-580C is an XGA GPS chartplotter controller with 1024 x 768 pixel resolution.
What is the power supply range for the HD-580C?
The HD-580C operates on DC 12V to 36V (plus or minus 10%).
What chart data can be loaded on the Haiyang HD-580C?
The HD-580C supports HY-MAP (built-in or external), C-MAP and Navionics chart data, and complies with IMO Resolution MSC.112(73).
How many waypoints and routes does the HD-580C support?
It supports up to 100,000 waypoints, 50,000 track points, and 100 routes with 20 waypoints per route, each with an 8-character name tag.
