Haiyang

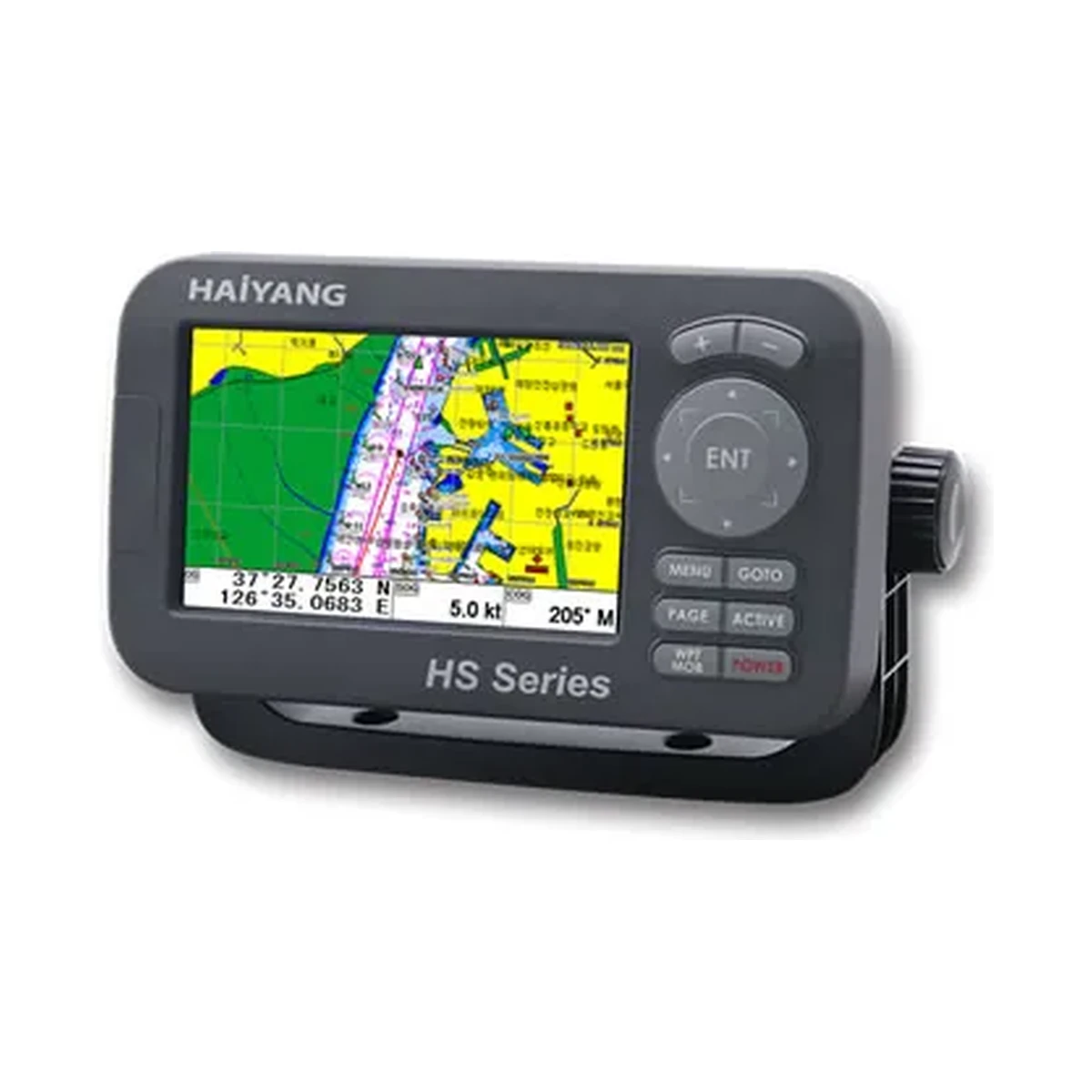

Haiyang HS-55C
A 5 inch LED chart plotter with internal or external GPS antenna, built to IMO Resolution MSC.112(73).
- Brand
- Haiyang
- Category
- Marine
- Availability
- Enquire for lead time
Downloads
Technical
Specifications
| Display Screen | 5 inch color LCD with LED backlight |
|---|---|
| Resolution | WVGA (800 x 480 pixels) |
| Power Supply | DC 12V ~ 36V (±10%) |
| Operation Temperature (Display Unit) | -15°C ~ +50°C |
| Operation Temperature (Antenna Unit) | -25°C ~ +70°C |
| Performance Standard | IMO Resolution MSC.112(73) |
| Option | MicroSD, External GPS Antenna |
| Receiver Frequency | L1 1575.42MHz (C/A) |
| Number of Channel | 50 channel over |
| Accuracy (Position) | 2.5m (CEP 50%) |
| Sensitivity (Acquisition) | -148 dBm |
| Sensitivity (Tracking) | -165 dBm |
| Data Update Rate | 1 Second |
| GNSS | GPS/QZSS, GLONASS, Galileo, BeiDou |
| Support | DGPS, SBAS (EGNOS, WAAS, MASA, GAGAN, GLONASS) |
| Display Method | Mercator projection |
| Display Mode | True motion/N/S/E/W up/Course up/Head up |
| Latitude Limits | Between 85°N to 85°S |
| Map Scale | 0.05NM to 1,500NM |
| Map Datum | WGS-84 |
| Waypoint | 100,000 points (16 colors and 16 icons selectable per point with name tag, 8 alphanumeric characters) |
| Track Point | 50,000 points (2 types) |
| Route | Max capacity 100 Routes (20 WPTs per Route, each with name tags of 8 alphanumeric characters) |
| Draw Point | 1,000 points |
| Area Name | 1,000 points |
| Chart Data | HY-MAP (Built-in or External) |
| Output Data | NMEA-0183 |
| Input Data | NMEA-0183 |
| Alarm | Arrival, Anchor, XTE, Userline, CPA, TCPA |
Overview
About this product
Haiyang HS-55C (LED Color Chart Plotter)
- 5inch (led)color display
- Internal / External marine GPS antenna with 1o meter cable
- Power cable with fuse
- Dust cover
- Operating manual
- Bracket mount
- 2 nos screw knobs
Questions
Frequently asked questions
What satellite systems does the HS-55C's GPS receiver support?
The HS-55C's GNSS covers GPS/QZSS, GLONASS, Galileo and BeiDou across more than 50 channels, with DGPS and SBAS (EGNOS, WAAS, MSAS, GAGAN, GLONASS) augmentation support.
What size is the HS-55C display?
It has a 5-inch color LCD with LED backlight at WVGA resolution (800 x 480 pixels).
How accurate is the HS-55C's position fix?
Position accuracy is 2.5m (CEP 50%), with acquisition sensitivity of -148 dBm and tracking sensitivity of -165 dBm, updated once per second.
How many waypoints and routes can the HS-55C store?
It stores up to 100,000 waypoints (16 colors and 16 icons selectable per point, with 8-character name tags), 50,000 track points, and a maximum of 100 routes with 20 waypoints per route.
