Icom

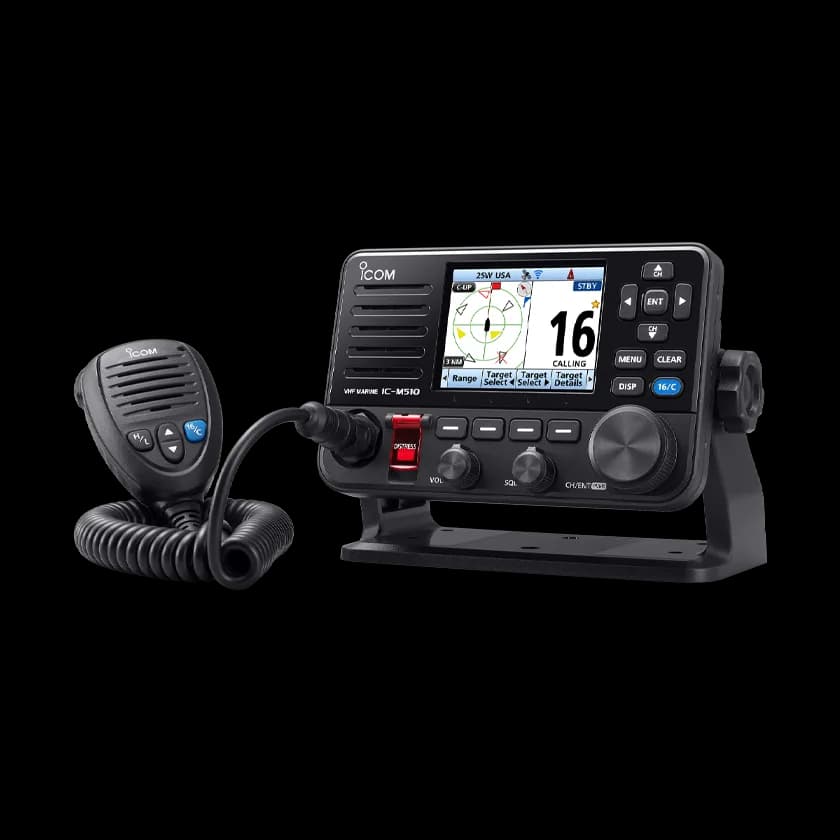

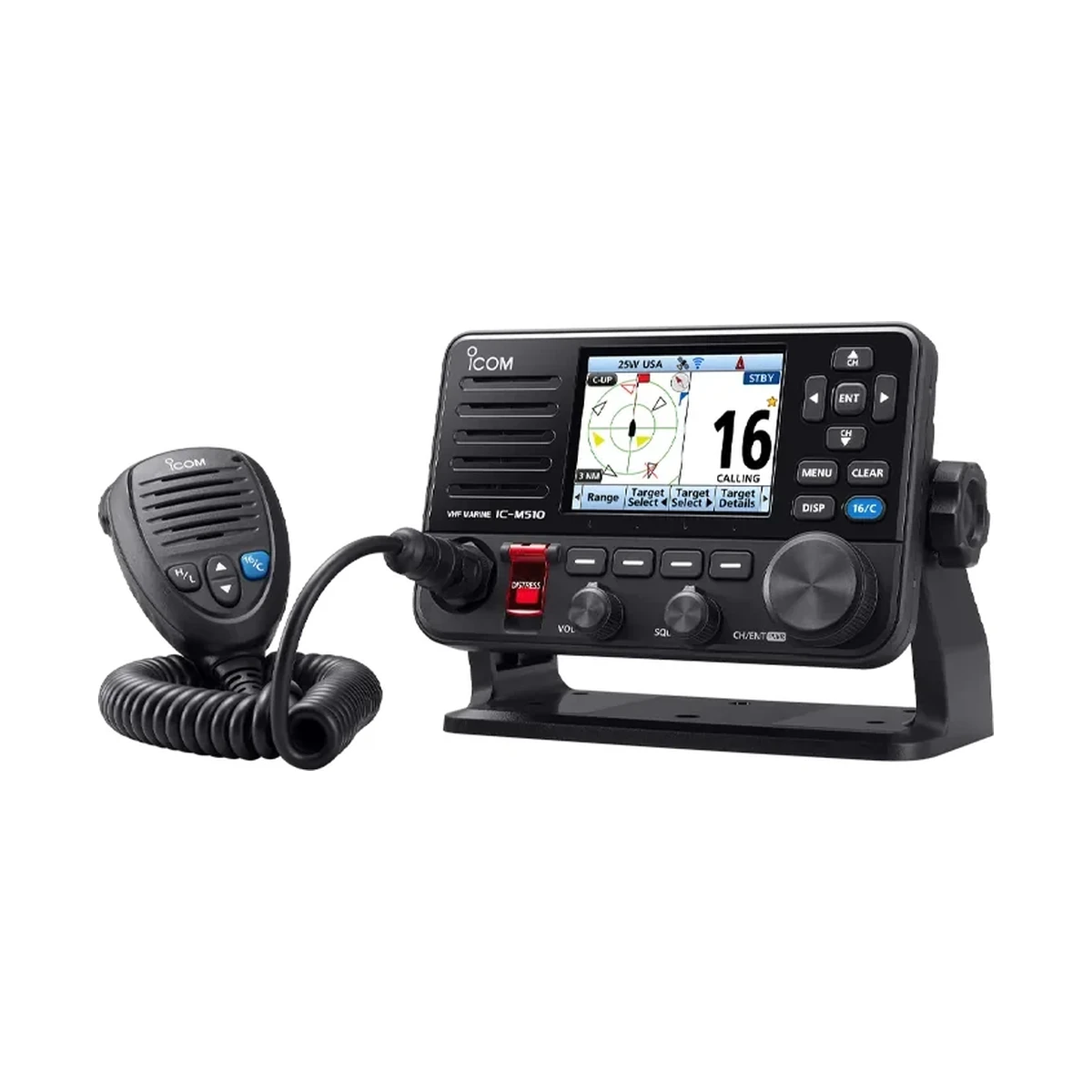

Icom IC-M510 Class D fixed-mount VHF marine radio with DSC, dual-channel AIS receive, and built-in Wi-Fi connectivity.
Technical
| Frequency range TX | 156.025–157.425 MHz |
|---|---|
| Frequency range RX | 156.050–163.275 MHz |
| DSC | 156.525 MHz |
| AIS1, 2 | 161.975, 162.025 MHz |
| Usable channels | USA, CAN, INT, WX channels |
| Type of emission | 16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS) |
| Power supply requirement | 13.8 V DC (11.7–15.9 V DC) |
| Current drain TX 25 W output | 5.5 A |
| Current drain RX Max. audio | 3.3 A |
| Operating temperature range | –20°C to +60°C; –4°F to +140°F |
| Antenna impedance | 50 Ω |
| Weight (approx.) | 730 g; 1.6 lb (Not including microphone) |
| Output power (at 13.8 V DC) | 25 W, 1W |
| Max. frequency deviation | ±5 kHz |
| Frequency tolerance | ±0.5 kHz |
| Spurious emissions | Less than −70 dBc (at 25 W) |
| Residual modulation | More than 40 dB |
| Adjacent channel power | More than 70 dB |
| Sensitivity (at 12 dB SINAD) | 0.32 μV typical |
| DSC Sensitivity (1% BER) | 0.89 μV emf typical |
| Adjacent channel selectivity | More than 75 dB |
| DSC Adjacent channel selectivity (1% BER) | More than 73 dBμ emf |
| Spurious response | More than 75 dB |
| DSC Spurious response (1% BER) | More than 73 dBμ emf |
| Intermodulation | More than 75 dB |
| DSC Intermodulation (1% BER) | More than 68 dBμ emf |
| Hum and noise | More than 40 dB |
| Audio output power (at 10% distortion) | More than 15 W with a 4 Ω external speaker |
| Wireless LAN standard | IEEE802.11 b/g/n |
| Authentication and Encryption | WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES) |
| Channels (Wi-Fi) | 1 to 13 (2.4 GHz band) |
| Output power (Wi-Fi) | Less than 10 mW/MHz |
Overview
The IC-M510 Class D is a fixed-mount VHF marine radio covering the international 156.025 to 157.425MHz transmit band with dedicated DSC (156.525MHz) and dual-channel AIS receive (161.975/162.025MHz) for distress alerting and vessel tracking. It switches between 25W and 1W output from a 13.8V DC supply, drawing 5.5A on transmit, and drives an external speaker at more than 15W audio output. A built-in 802.11 b/g/n Wi-Fi module with WEP, WPA-PSK and WPA2-PSK encryption lets the radio connect to smartphones and other Wi-Fi devices, and the unit weighs 730g and is rated from -20C to +60C.
Questions
It transmits at 25 W or 1 W at 13.8 V DC, selectable depending on range required.
Yes. It has dedicated DSC on 156.525 MHz and can receive both AIS channels, AIS1 at 161.975 MHz and AIS2 at 162.025 MHz.
Yes, it includes IEEE802.11 b/g/n wireless LAN with WEP, WPA-PSK and WPA2-PSK authentication and encryption support.
Approximately 730 g (1.6 lb), not including the microphone.
