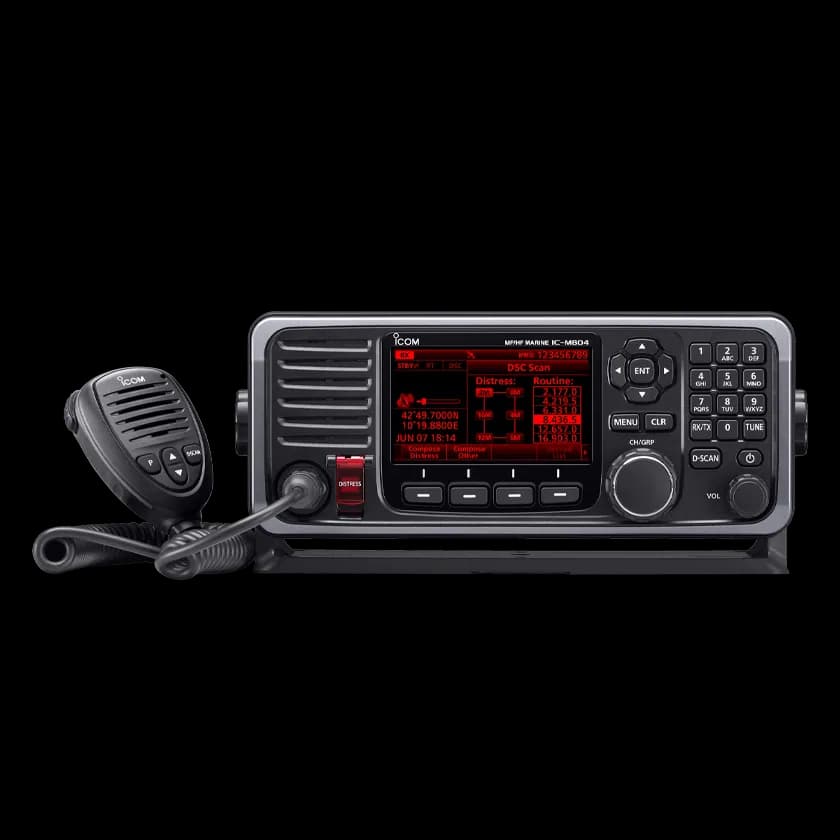

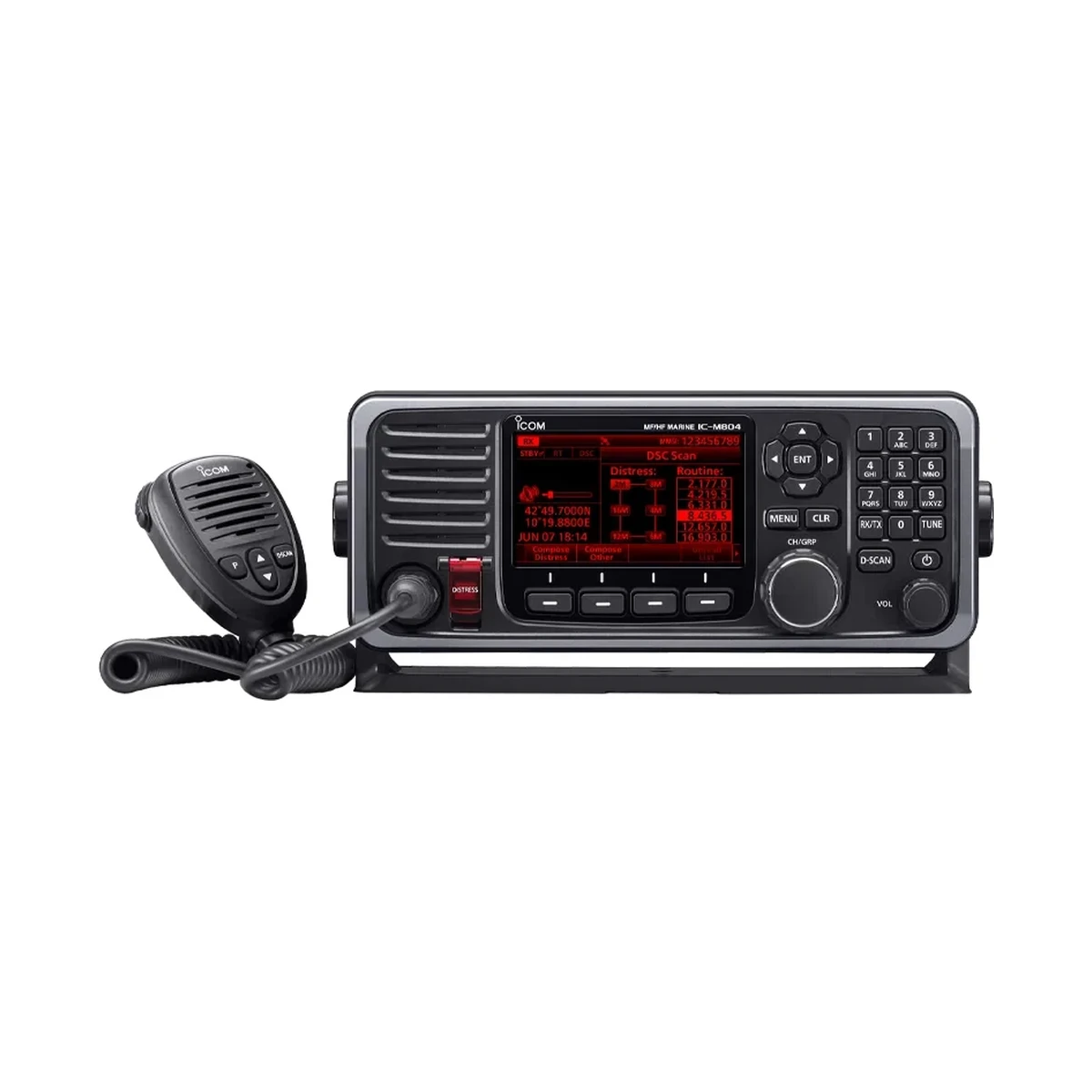

Icom IC-M804 marine SSB transceiver for long-range HF communication with built-in DSC and up to 125W PEP output.
Technical
| Frequency coverage (Receive) | 500 kHz–29.9999 MHz (continuous) |
|---|---|
| Frequency coverage (Transmit) | 1.6–2.9999, 4.0–4.9999, 6.0–6.9999, 8.0–8.9999, 12.0–13.9999, 16.0–17.9999, 18.0–19.9999, 22.0–22.9999, 25.0–27.5000 MHz |
| DSC Frequency | 2.1875, 4.2075, 6.3120, 8.4145, 12.5770, 16.8045 MHz |
| Mode (TX/RX) | J3E (USB), J2B (AFSK), F1B (FSK) |
| Mode (RX only) | J3E (LSB), A1A (CW), H3E (AM) |
| DSC Mode | F1B |
| Antenna impedance | 50 Ω (unbalanced) |
| Usable temperature range | –15 ℃ to 55 ℃ |
| Frequency stability (TX/RX) | ±10 Hz (below 29.9999 MHz) |
| Frequency stability (DSC) | ±10 Hz |
| Power supply requirement | 10.8–15.6 V (12 V DC), 21.6–31.2 V (24 V DC) |
| Current drain (Receive) | Less than 6 A (12 V) / 3A (24 V) |
| Current drain (Transmit) | Less than 40 A (12 V)/20 A (24 V) |
| Main unit dimensions | 367 (W) × 95 (H) × 260 (D) mm |
| Controller dimensions | 274 (W) × 114 (H) × 86 (D) mm |
| Main unit weight | 8.6 kg (approximate) |
| Controller weight | 760 g (approximate) |
| Output power (1.6–3.9999 MHz) | 85 W pep |
| Output power (4.0–27.5000 MHz) | 125 W pep |
| Spurious emissions | Less than -50 dB peak output power |
| Carrier suppression | More than 40 dB peak output power |
| Unwanted sideband suppression | More than 55 dB peak output power |
| Sensitivity (J3E, A1A, 0.5–1.5999 MHz) | 30 dBμV emf (20 dB SINAD) |
| Sensitivity (J3E, A1A, 1.6–29.9999 MHz) | 8 dBμV emf (20 dB SINAD) |
| Sensitivity (J2B, F1B) | 0 dBμV emf (1% error rate) |
| Sensitivity (H3E, 0.5–1.5999 MHz) | 44 dBμV emf (20 dB SINAD) |
| Sensitivity (H3E, 1.6–3.9999 MHz) | 24 dBμV emf (20 dB SINAD) |
| DSC Sensitivity | 0 dBμV emf (1% error rate) |
| Squelch sensitivity (J3E Threshold) | Less than 26 dBμV emf |
| Squelch sensitivity (J3E Tight) | Less than 96 dBμV emf |
| Squelch sensitivity (H3E Threshold) | Less than 36 dBμV emf |
| Squelch sensitivity (H3E Tight) | Less than 116 dBμV emf |
| Audio output power | 4.0 W at 10% distortion with 4 Ω load |
| Clarity variable range | ±150 Hz |
| Remote controller | IPX7 (1 m depth water for 30 minutes) |
Overview
The IC-M804 is a marine SSB transceiver for long-range HF communication, receiving continuously from 500kHz to 29.9999MHz and transmitting across the marine HF bands with built-in DSC on six dedicated distress and calling frequencies. It delivers 85W PEP on the lower bands (1.6 to 3.9999MHz) and 125W PEP from 4.0 to 27.5000MHz, running from either a 12V or 24V DC supply and drawing up to 40A on transmit at 12V. The main unit weighs 8.6kg (367 x 95 x 260mm) with a separate 760g remote controller that carries an IPX7 waterproof rating for use in the cockpit.
Questions
It delivers 85 W PEP on 1.6-3.9999 MHz and 125 W PEP on 4.0-27.5000 MHz.
The IC-M804 receives continuously from 500 kHz to 29.9999 MHz.
Yes, it has dedicated DSC frequencies at 2.1875, 4.2075, 6.3120, 8.4145, 12.5770 and 16.8045 MHz using F1B mode.
Yes, the remote controller carries an IPX7 rating, tested to 1 metre depth for 30 minutes.
