Digital Yacht

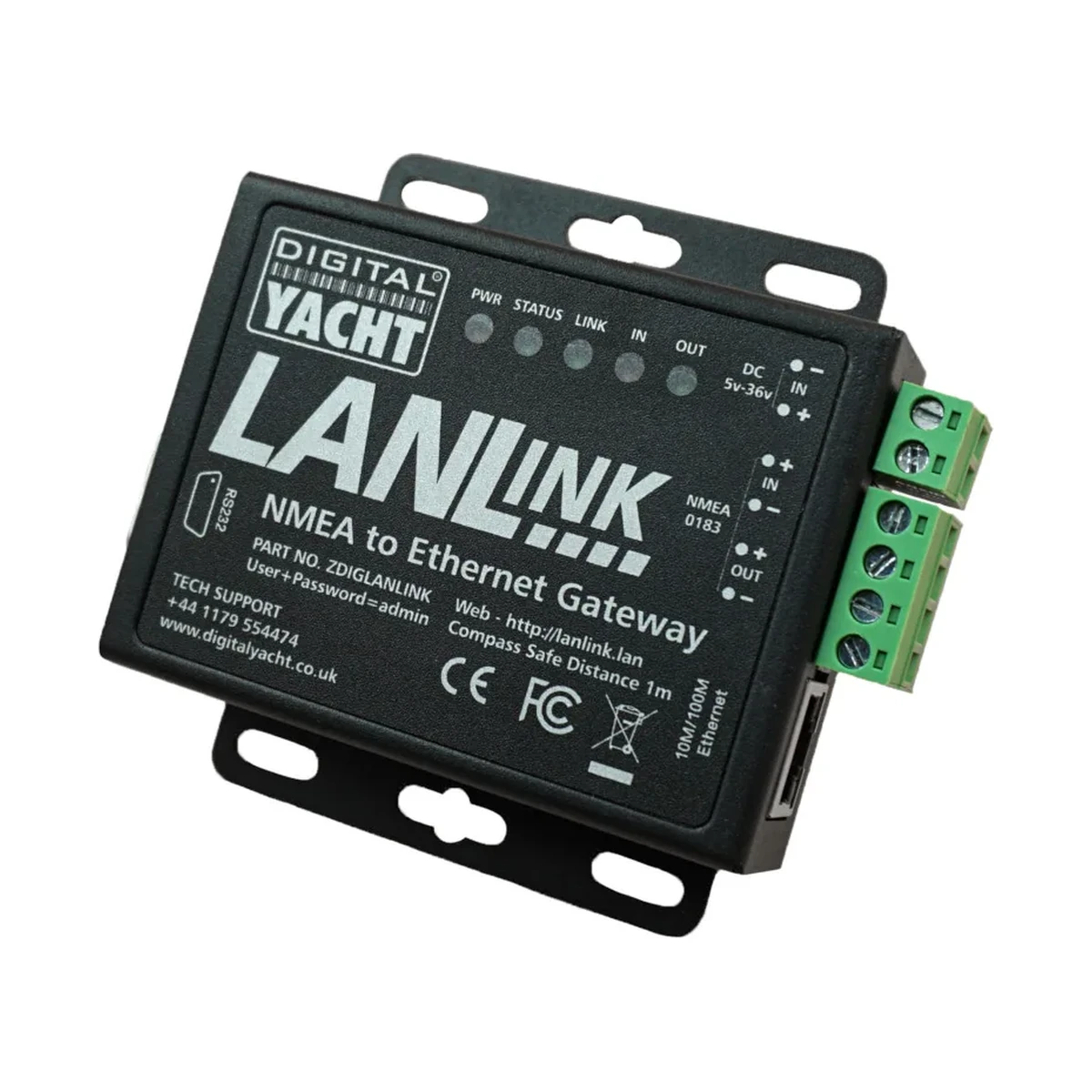

LanLink NMEA 0183 to Ethernet Gateway

The Digital Yacht LanLink is an NMEA 0183 to Ethernet gateway that bridges boat instrumentation to a network using TCP/IP or UDP.

Brand: Digital Yacht
Category: Marine Network & Interface
Manufacturer: Digital Yacht website ↗
Availability: Enquire for lead time

Technical

Specifications

Function	NMEA to Ethernet Gateway
Power	12/24v DC low power operation
Connection	RJ45 Cat 5/6 patch cable connection
Connection modes	TCP/IP or UDP – support for up to 5 connected devices with TCP/IP
Data flow	Bi-Directional
NMEA 0183 I/O	One NMEA 0183 input & output
PC interface	RS232 port for PC apps
Weight	240 g
Dimensions	180 x 1405 x 40 mm
Version	NMEA0183, NMEA2000

Overview

About this product

LanLink is Digital Yacht's NMEA 0183 to Ethernet gateway, converting a single bi-directional NMEA 0183 input and output into a network-ready signal over a standard RJ45 Cat 5/6 patch cable. It supports both TCP/IP and UDP connection modes, with TCP/IP allowing up to five connected devices, and also includes an RS232 port for PC-based navigation applications. Running on low-power 12/24V DC supply and weighing 240g, it is a straightforward way to bring NMEA 0183 data onto a boat's Ethernet network.

Questions

Frequently asked questions

How does the LanLink connect to my network?

It connects via a standard RJ45 Cat 5/6 patch cable and supports both TCP/IP and UDP connection modes, with TCP/IP supporting up to 5 connected devices at once.

Does the LanLink pass data in both directions?

Yes, the LanLink provides bi-directional data flow, with one NMEA 0183 input and one NMEA 0183 output.

What power supply does the LanLink need?

The LanLink runs on 12/24V DC and is designed for low power operation.

Can I connect the LanLink directly to a PC?

Yes, it includes an RS232 port for connecting to PC-based navigation applications.
