AMEC

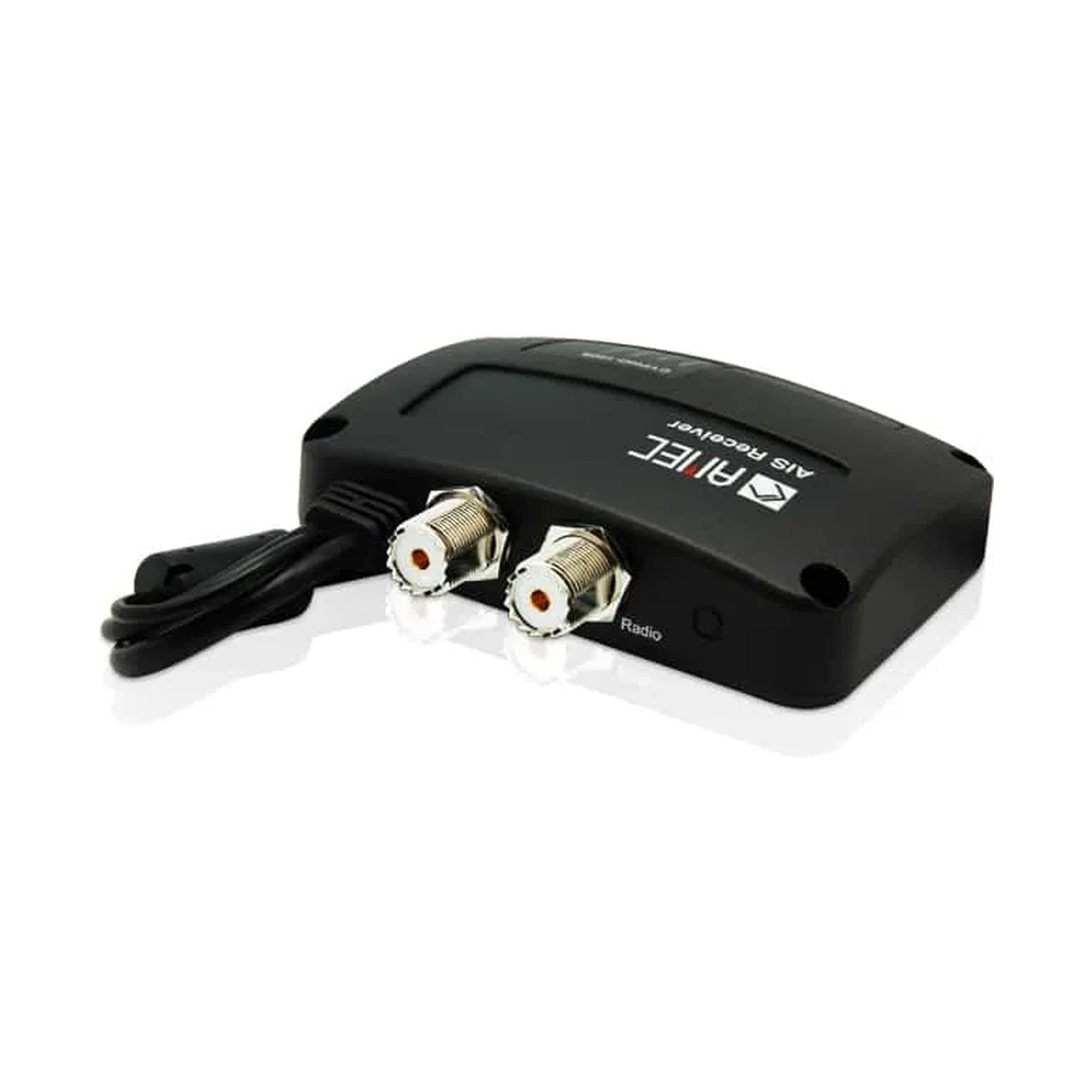

AMEC Cypho-150S AIS Receiver
The AMEC Cypho-150S is a dual-channel AIS receiver with an integrated VHF radio pass-through, NMEA 0183, and USB output.
- Brand
- AMEC
- Category
- Marine
- Availability
- Enquire for lead time
Technical
Specifications
| Applicable Standards | ITU-R M.1371; IEC 60945 Ed.4.0 2002; IEC 62287-1 Ed. 2.1:2017 (applicable parts); EN 62368-1:2014 + A11:2017 |
|---|---|
| Number of AIS Receivers | 2 channels |
| CH-1 | CH 87B (161.975MHz) |
| CH-2 | CH 88B (162.025MHz) |
| Channel Bandwidth | 25KHz |
| Message Format | AIS Class A & B messages |
| Data Rate | 9,600bps / per channel |
| Receive Sensitivity | -112 dBm @ PER ≤ 20% |
| Supply Voltage | 12 / 24V DC |
| Power Consumption | <1.50 Watt |
| LED Indication (CYPHO-150) | Power, Error, AIS Rx |
| LED Indication (CYPHO-150S) | Power, Error, AIS Rx, Radio Tx |
| RF Frequency Range (CYPHO-150S only) | 156.025 ~ 162.025 MHz |
| RF AIS Receiver Sensitivity (CYPHO-150S only) | -110dBm (when not connecting to DSC) |
| RF Insertion Loss (CYPHO-150S only) | Receiver Path 3.5dB; Transmit Path 1.2dB |
| VHF Antenna Connector | SO-239 (Female) |
| NMEA 0183 | 38400 (default), 9600, 4800 bps |
| USB 2.0 | Supported |
| VHF Radio | Supported (CYPHO-150S only) |
| Operating Temperature | -15°C~55°C |
| Storage Temperature | -25°C~70°C |
| Humidity Operation | 0~95% RH at 40°C |
| Vibration | IEC 60945 |
| Waterproof | IP2X |
| Width | 128 mm (4.99 inch) |
| Height | 36 mm (1.40 inch) |
| Depth | 88 mm (3.43 inch) (exclude connector) |
| Weight | 210 g (including cable) |
Overview
About this product
The AMEC Cypho-150S is a dual-channel AIS receiver covering AIS Class A and B messages on the 161.975MHz and 162.025MHz channels at -112 dBm sensitivity, and adds a VHF radio pass-through path across 156.025 to 162.025MHz with only 3.5dB receive and 1.2dB transmit insertion loss, letting it share a single antenna with an existing VHF radio. Data is output over NMEA 0183 at a default 38400 baud or via USB 2.0, and the unit draws under 1.5W from a 12/24V DC supply. It is compact at 128 x 88 x 36 mm and 210g including cable, and meets ITU-R M.1371, IEC 60945 and IEC 62287-1 standards.
Questions
Frequently asked questions
Does the Cypho-150S support VHF radio functionality?
Yes, the Cypho-150S adds VHF radio support with an RF frequency range of 156.025 to 162.025 MHz, unlike the base Cypho-150.
How many AIS channels does the Cypho-150S receive?
It has 2 AIS receiver channels (CH 87B at 161.975 MHz and CH 88B at 162.025 MHz), each at 9,600 bps, with a receive sensitivity of -112 dBm at 20% PER.
What is the waterproof rating of the Cypho-150S?
IP2X.
What data connectivity does the Cypho-150S provide?
NMEA 0183 output (38400 bps default, selectable 9600 or 4800 bps) and a USB 2.0 connection.
