Icom

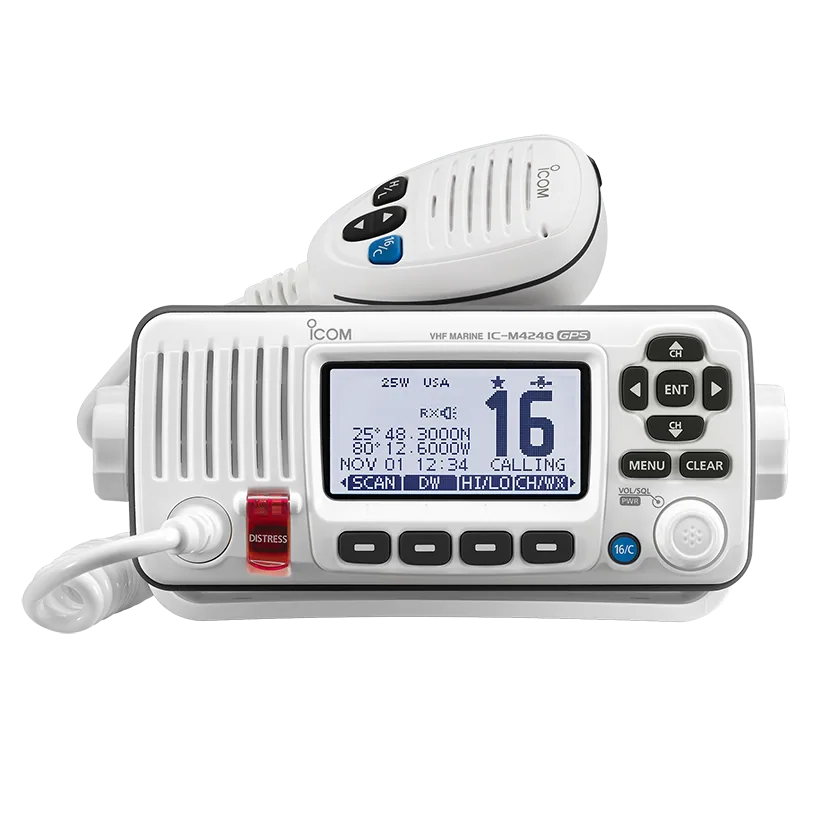

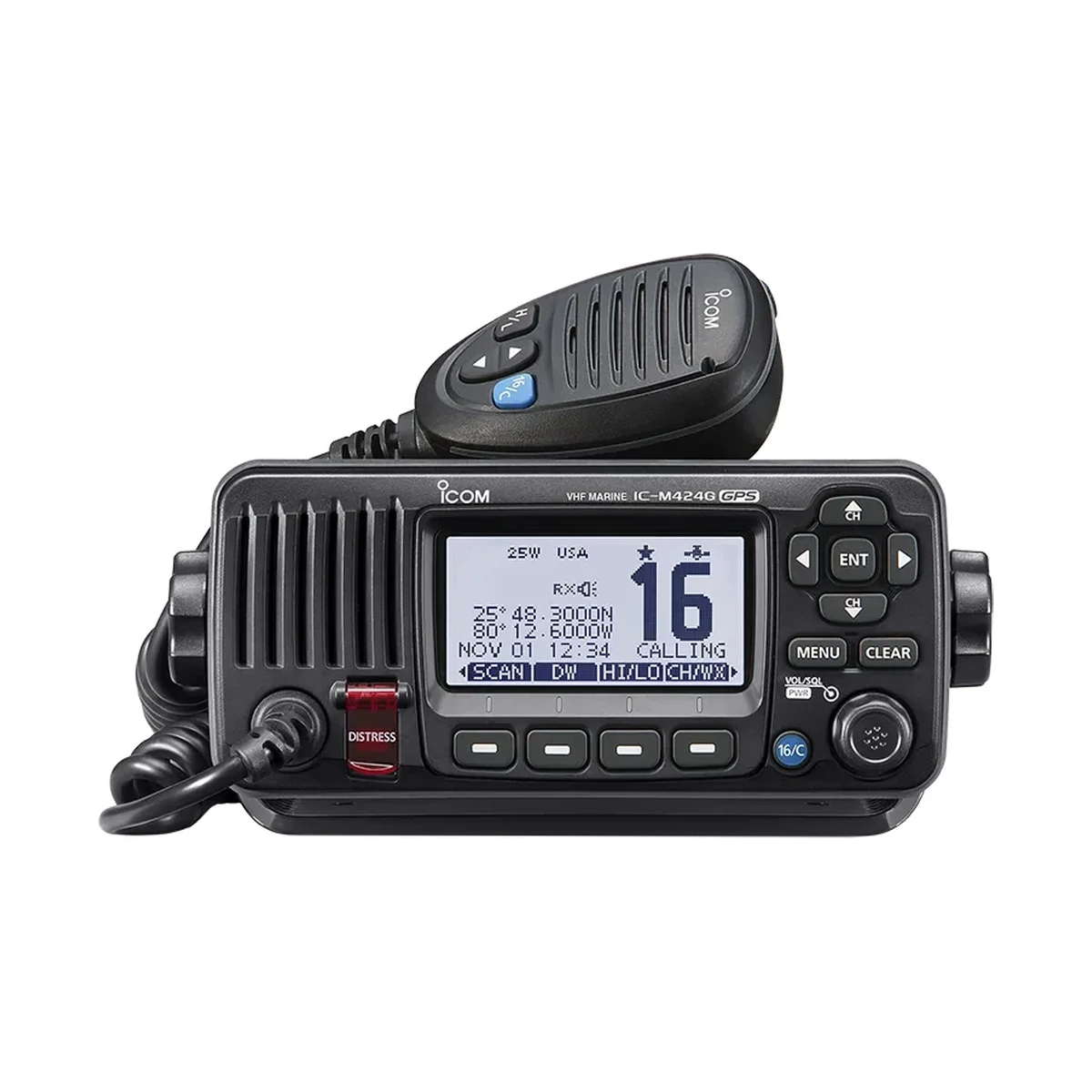

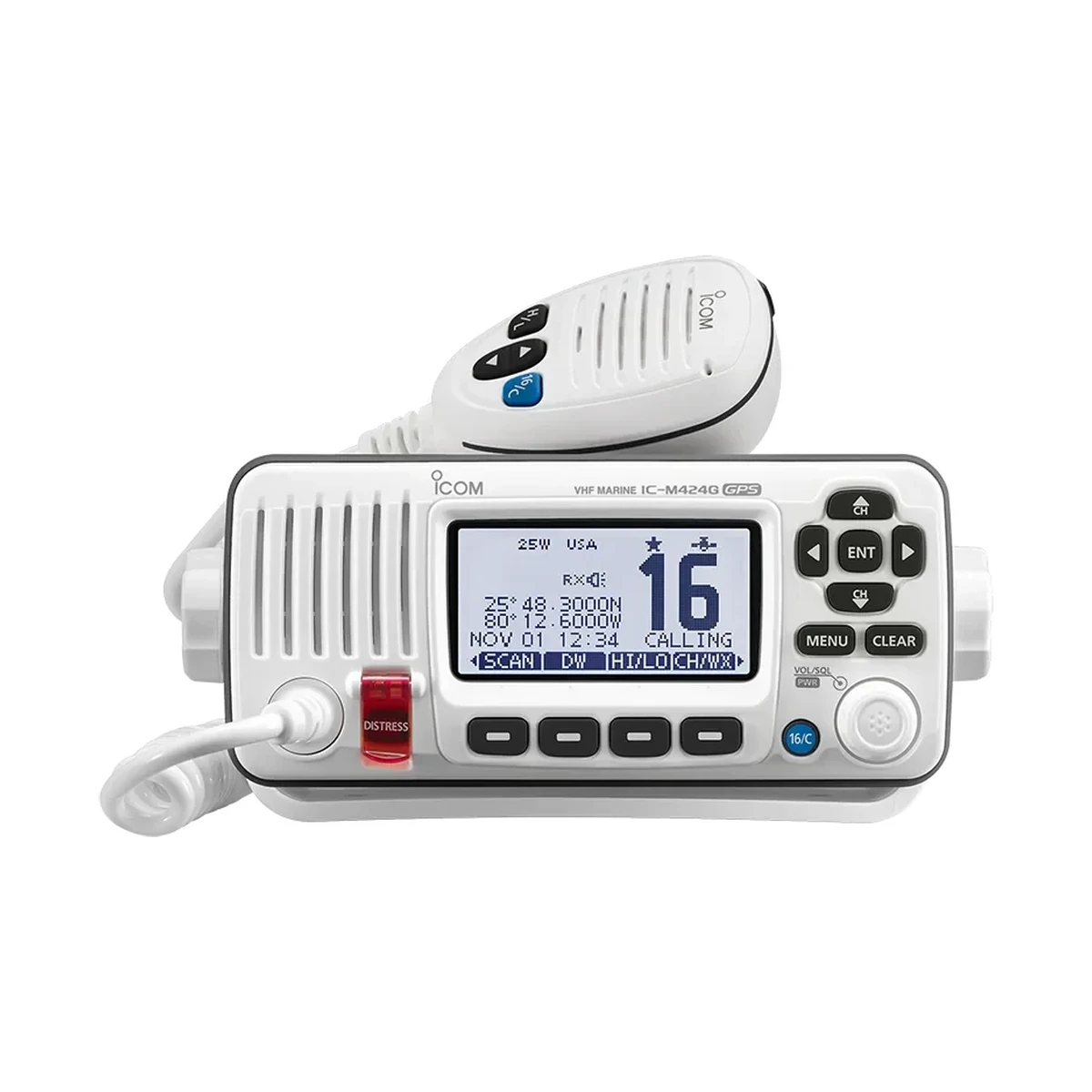

Icom IC-M424G fixed-mount VHF marine radio with built-in 66-channel GPS and NMEA2000 output, rated IPX7.
Technical
| Frequency range TX | 156.025–157.425 MHz |
|---|---|
| Frequency range RX | 156.050–163.275 MHz |
| CH.70 | 156.525 MHz |
| Usable channels | USA, CAN, INT, WX channels |
| Type of emission | 16K0G3E, 16K0G2B |
| Power supply requirement | 13.8 V DC nominal (11.7-15.9 V DC) |
| Current drain TX 25 W output | 5.5 A |
| Current drain RX AF max. External SP | 5.0 A (RX SP ON) |
| Current drain RX AF max. Internal SP | 1.5 A |
| Operating temperature range | −20°C to +60°C; −4°F to +140°F |
| Antenna impedance | 50 Ω (SO-239) |
| Dimensions (W×H×D) | 180×82×119.9 mm; 7.09×3.23×4.72 in |
| Weight (approx.) | 1.2 kg; 2.65 lb |
| NMEA in/out formats | RMC, GGA, GNS, GLL, DSC, DSE |
| Output power (at 13.8 V DC) | 25 W, 1 W |
| Max. frequency deviation | ±5.0 kHz |
| Frequency tolerance | ±10 ppm (−20°C to +60°C) |
| Spurious emissions High | Less than −70 dBc |
| Spurious emissions Low | Less than −56 dBc |
| Sensitivity (12dB SINAD) | −13dBμ typ. |
| Squelch sensitivity | Less than −10dBμ |
| Adjacent channel selectivity | More than 70dB |
| Spurious response | More than 70dB |
| Intermodulation | More than 70dB |
| Audio output power (at 10% distortion, 4Ω load) | 10W typical (Ext. speaker) |
| GPS Receiving frequency | 1575.42 MHz |
| GPS Receiving channels | 66 channels |
| GPS Satellite differential type | WAAS, EGNOS, MSAS, GAGAN |
| Water | IPX7 (Waterproof protection) |
Overview
The IC-M424G is a fixed-mount VHF marine radio with an internal 66-channel GPS receiver and NMEA2000/NMEA0183 output (RMC, GGA, GNS, GLL, DSC, DSE), so position data feeds DSC distress calls and connected chartplotters without a separate GPS antenna. It switches between 25W and 1W output from a 13.8V DC supply, drawing 5.5A on transmit, and drives an external speaker at up to 10W audio output. The radio connects via a 50 ohm SO-239 antenna port, is rated IPX7 waterproof, weighs 1.2kg, and measures 180 x 82 x 119.9mm.
Questions
It transmits at 25 W or 1 W at 13.8 V DC.
Yes. Its internal GPS uses 66 receiving channels at 1575.42 MHz and supports WAAS, EGNOS, MSAS and GAGAN differential corrections.
Yes, it carries an IPX7 waterproof rating.
Approximately 1.2 kg (2.65 lb).
