Icom

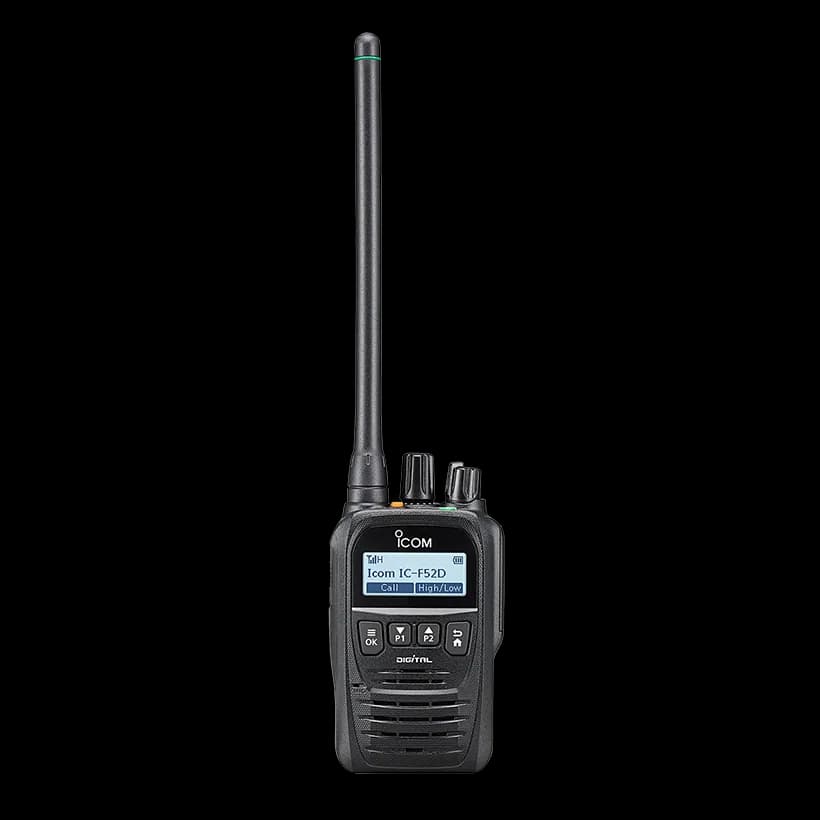

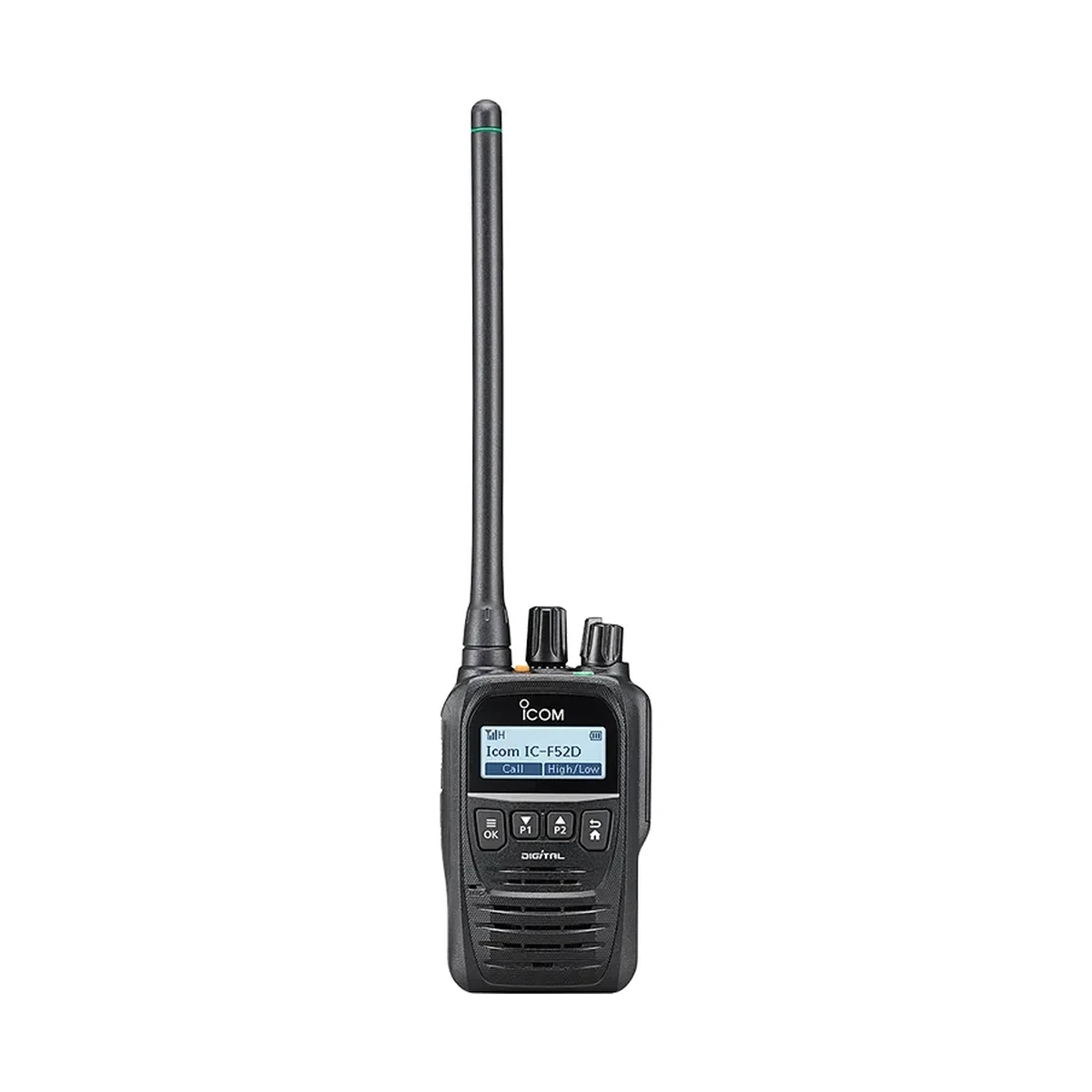

IC-F52D-UL / IC-F62D-UL

Intrinsically safe ATEX-rated digital handhelds covering VHF 136-174 MHz (IC-F52D) and UHF 400-470 MHz (IC-F62D) with 512 channels and switchable 5/2/1 W output.

Brand: Icom
Category: Land Mobile
Manufacturer: Icom website ↗
Price: Quoted per order, with customer-specific discounts
Availability: Enquire for lead time

Technical

Specifications

Frequency coverage (IC-F52D, NXDN Version)	136–174 MHz
Frequency coverage (IC-F52D, dPMR Version)	350–400, 400–470, 450–512, 450–520 MHz
Frequency coverage (IC-F62D)	400–470 MHz
Number of channels	512 channels /128 zones
Power supply requirement	7.5 V DC nominal
Current drain - Tx	1.8 A
Current drain - Rx (Max. audio internal SP / Standby)	500 mA / 170 mA
Antenna impedance	50 Ω
Operating temperature range	−30 °C to +60 °C; −22 °F to +140 °F
Dimensions (With BP-294)	56 × 91.5 × 36.5 mm; 2.2 × 3.6 × 1.4 in
Weight (main unit)	125 g; 4.4 oz
Weight (with BP-294, MBB-3)	270 g; 9.5 oz
Output power (Hi, L2, L1)	5 W, 2 W, 1 W
Frequency stability	±1.0 ppm
Spurious emissions (USA)	80 dB typ.
Audio harmonic distortion	0.4% typ. (AF 1 kHz 40% deviation)
Sensitivity - Analog (12 dB SINAD)	0.23 μV typ.
Sensitivity - Digital (1% BER, IC-F52D)	−5.0 dBμV emf typ. (0.28 μV typ.) (@DVN), −3.0 dBμV emf typ. (0.35 μV typ.) (@DN)
Audio output power - Internal speaker	1300 mW typ. (at 5% distortion, 8 Ω load)
Audio output power - External speaker	1000 mW typ. (at 5% distortion, 8 Ω load); 1300 mW typ. with HM-222H

Overview

About this product

The IC-F52D-UL and IC-F62D-UL are intrinsically safe digital handheld radios for use in explosive atmospheres, covering VHF 136-174 MHz (IC-F52D) and UHF 400-470 MHz (IC-F62D) with 512 channels across 128 zones. Output power is switchable between 5 W, 2 W, and 1 W, with a compact main unit weighing just 125 g (270 g with the BP-294 battery and antenna). Analog sensitivity is rated at 0.23 μV typical, digital sensitivity down to -5.0 dBμV, and the radios operate from -30°C to +60°C, drawing 1.8 A on transmit from a 7.5 V nominal supply.

Questions

Frequently asked questions

What frequency bands do the IC-F52D-UL and IC-F62D-UL cover?

The IC-F52D-UL covers 136-174 MHz (NXDN version) or 350-400/400-470/450-512/450-520 MHz (dPMR version), while the IC-F62D-UL covers 400-470 MHz.

How many channels do the IC-F52D-UL and IC-F62D-UL store?

Both radios support 512 channels across 128 zones.

What output power do the IC-F52D-UL and IC-F62D-UL transmit at?

Both models offer three selectable power levels: 5 W (Hi), 2 W (L2) and 1 W (L1).

How rugged are the IC-F52D-UL and IC-F62D-UL for outdoor use?

They are rated to operate from -30 degrees C to +60 degrees C (-22 degrees F to +140 degrees F).
